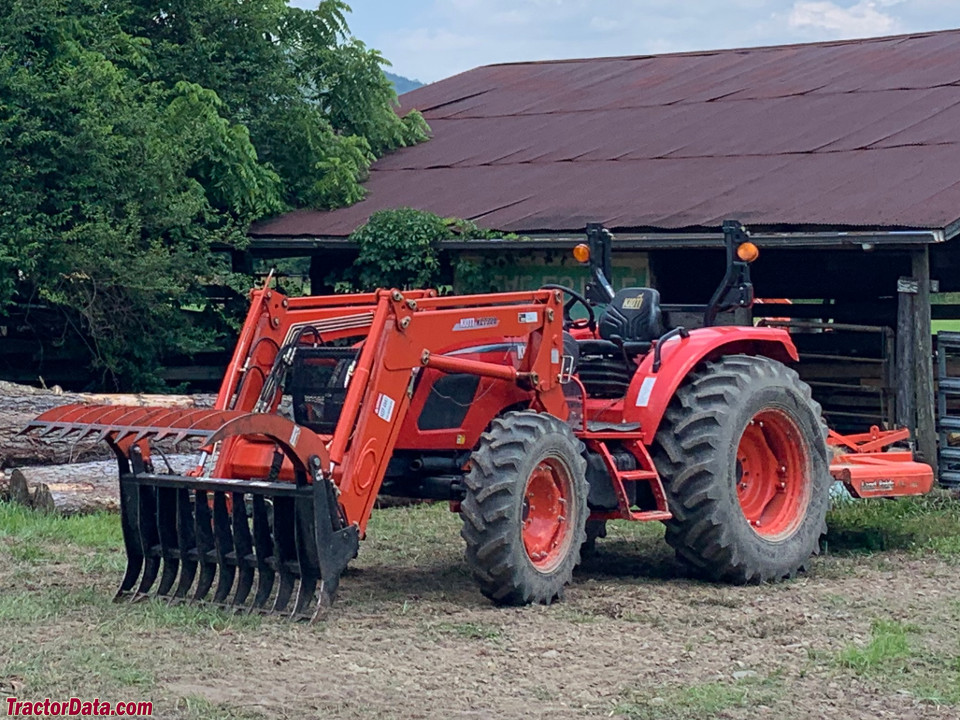

Kioti RX7320
| | 2014 - |
| RX Series | | Utility tractor |
|
| Production |
| Manufacturer: | Kioti (a part of Daedong)
|
| Type: | Utility tractor
|
| Kioti RX7320 Power |
| Engine (gross): | 73 hp
54.4 kW
|
| PTO (claimed): | 63 hp
47.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | rear standard
|
| Steering: | hydrostatic power
|
| Brakes: | wet discs
|
| Cab: | Two-post foldable ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 12-speed synchro shuttle
|
| | 12-speed power shuttle
|
| | 24-speed creeper power shuttle
|
 Transmission details ... |
| Hydraulics |
| Type: | open center gear pump
|
| Valves: | 1 to 3
|
| Pump flow: | 19.2 gpm
72.7 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift (at 24"/610mm): | 3898 lbs
1768 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E (1.375)
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
| Page information |
| Last update: | July 11, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
