TractorData.com - information on all makes and models of tractors
Tractors > Kioti > RX6010

Kioti RX6010

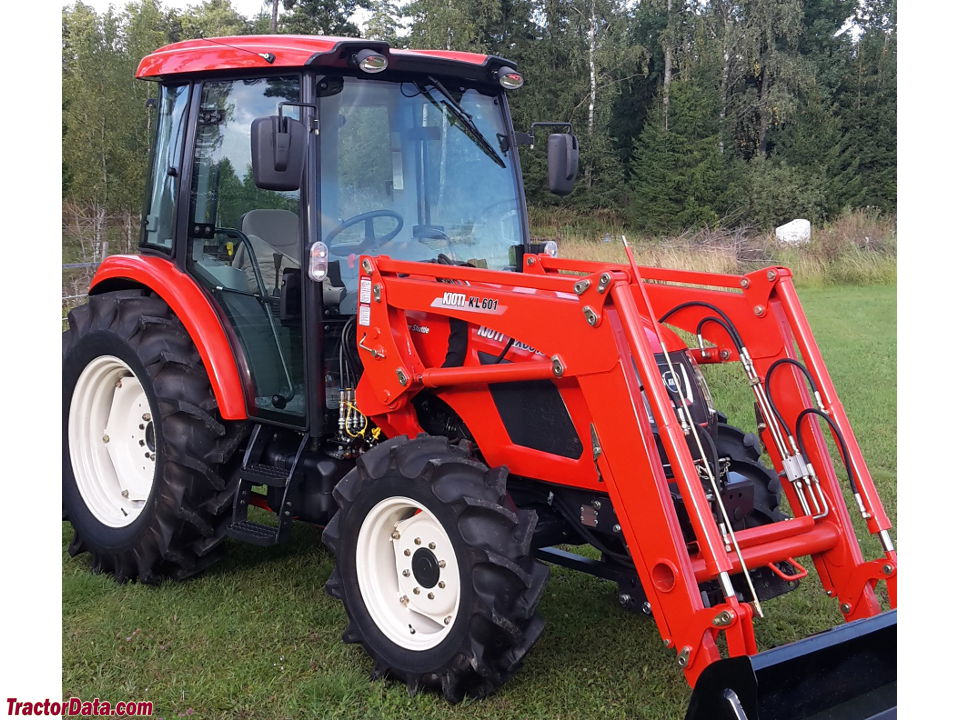

Kioti RX6010 tractor photo
2012 - 2013   RX Series
Utility tractor
Next model:Kioti RX6620






Production:

Manufacturer:Daedong


Kioti RX6010 Engine:

   Daedong 2.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:25.1 gal [95.0 L]


3-Point Hitch:

Rear Type:II
Control:position and draft control
Rear lift (at 24"/610mm):3710 lbs [1682 kg]


Power Take-off (PTO):

Rear RPM:540 (1.375)


Dimensions & Tires:

Wheelbase:82.7 inches [210 cm]
Weight:5677 lbs [2575 kg]
Front tire:9.5-20
Rear tire:14.9-28
full dimensions and tires ...


Kioti RX6010 attachments:

 front-end loader
 backhoe
all RX6010 attachments ...


RX6010 Serial Numbers:


- Serial numbers unknown -



Kioti RX6010 Power:

Engine (gross):59 hp [44.0 kW]
PTO (claimed):49.1 hp [36.6 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Brakes:wet discs
Cab:Cab standard with air-conditioning.


Hydraulics:

Type:open center gear pump
Valves:1 to 3
Pump flow:17.9 gpm [67.8 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
