Tractors > Challenger > MT545D

Challenger MT545D - tests

Challenger MT545D tractor photo
2013 - 2014   MT500D Series
Row-Crop tractor
Next model:Challenger MT545E
Series next:Challenger MT555D
Series back:Challenger MT535D
more Challenger MT545D specifications...






OCED Tractor Test 2775:

Nebraska summary:915

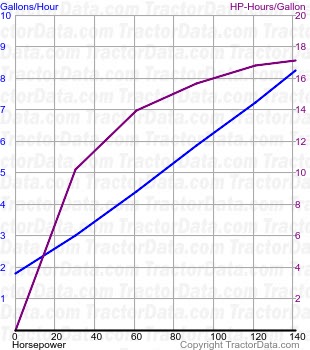

MT545D fuel use from test 915
Test Date:March 2013 - April 2013,
Type:Diesel CVT 4WD
PTO power (max):152.1 hp [113.4 kW]
PTO fuel use (max):8.7 gal/hour [32.9 l/hour]
PTO power (rated engine speed):136.9 hp [102.1 kW]
PTO fuel use (engine speed):8.3 gal/hour [31.4 l/hour]
PTO power (rated PTO speed):147.0 hp [109.6 kW]
PTO fuel use (PTO speed):8.6 gal/hour [32.6 l/hour]
Drawbar power (max):110.0 hp [82.0 kW]
Drawbar fuel use (max):8.3 gal/hour [31.4 l/hour]
Drawbar pull (max):15085 lbs [6842 kg]
Max pull gear:3.12KPH
Test report:PDF file


OCED Tractor Test 2788:

Nebraska summary:927

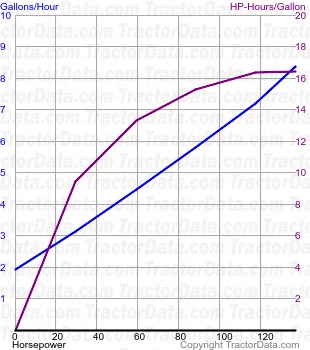

MT545D fuel use from test 927
Test Date:November 2012 - July 2013,
Type:Diesel AutoPower VI 4WD
PTO power (max):156.2 hp [116.5 kW]
PTO fuel use (max):8.7 gal/hour [32.9 l/hour]
PTO power (rated engine speed):141.1 hp [105.2 kW]
PTO fuel use (engine speed):8.2 gal/hour [31.0 l/hour]
PTO power (rated PTO speed):151.9 hp [113.3 kW]
PTO fuel use (PTO speed):8.6 gal/hour [32.6 l/hour]
Drawbar power (max):118.7 hp [88.5 kW]
Drawbar fuel use (max):7.9 gal/hour [29.9 l/hour]
Drawbar pull (max):13375 lbs [6066 kg]
Max pull gear:1F
Test report:PDF file
