Tractors > Challenger > MT685D

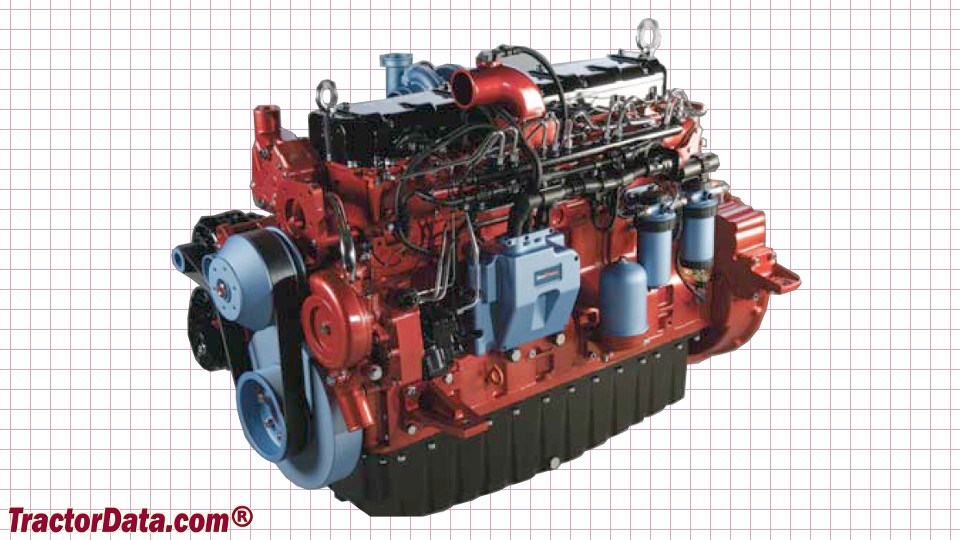

Challenger MT685D - engine

Challenger MT685D tractor photo
2011 - 2013   MT600D Series
Row-Crop tractor
Previous model:Challenger MT685C
Next model:Challenger MT685E
Series back:Challenger MT675D
more Challenger MT685D specifications...






Engine Detail:

 AGCO Power
 turbocharged air-to-air intercooled diesel
 6-cylinder
 liquid-cooled
 513.8 ci [8.4 L]
Bore/Stroke:4.370x5.709 inches [111 x 145 mm]
Emissions:Interim Tier IV
Emission control:selective catalytic reduction (SCR)
Power (gross):340 hp [253.5 kW]
Maximum Power:370 hp [275.9 kW]
Fuel system:electronic high-pressure common rail
Pre-heating:thermostart
Compression:16.7:1
Rated RPM:2100
Starter:electric
Starter volts:12
