    Kubota L4060

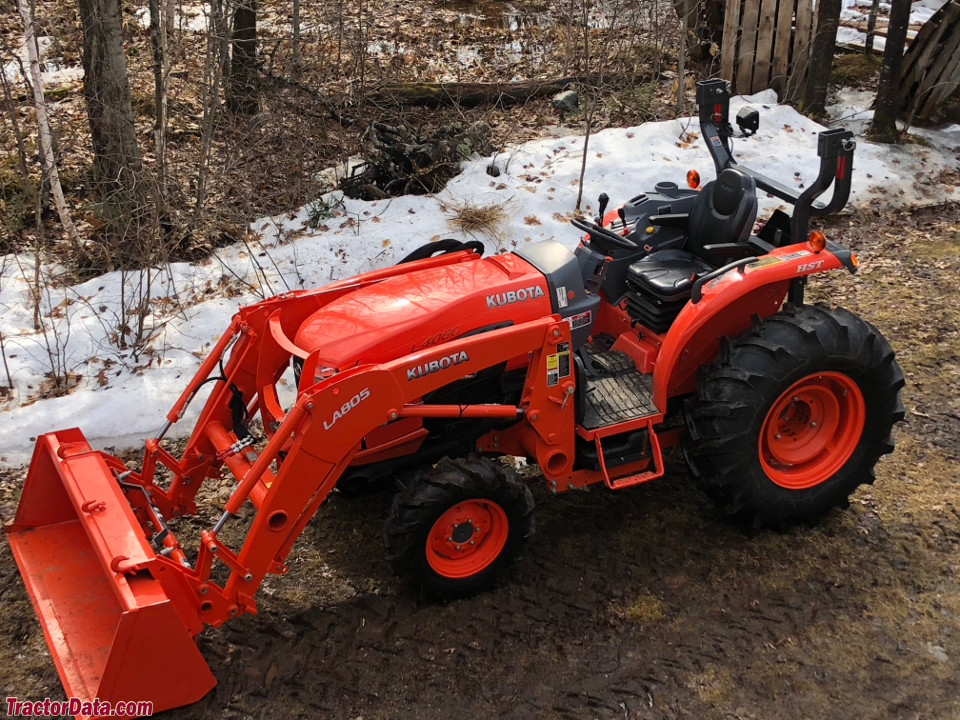

    Kubota L4060 tractor photo
    2013 -    L60 Series
    Compact Utility tractor
    Previous model:Kubota L3940
    Larger:Kubota L4760
    Smaller:Kubota L3560






    Production:

    Manufacturer:Kubota


    Variants:

    L4060DT:4WD
    L4060GST:4WD 12-speed
    L4060HST:hydrostatic
    L4060HSTC:hydro cab


    Kubota L4060 Engine:

       Kubota 2.4L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:13.5 gal [51.1 L]


    3-Point Hitch:

    Rear Type:I
    Control:position control, draft control optional
    Rear lift (at 24"/610mm):2760 lbs [1251 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPM:540 (1.375)
    Mid PTO:optional
    Mid RPM:2000


    Dimensions & Tires:

    Wheelbase:74.6 inches [189 cm]
    Weight:3737 to 4134 pounds
    Front tire:8.3-16
    Rear tire:14.9-24
    full dimensions and tires ...


    L4060 Serial Numbers:


    - Serial numbers unknown -



    Kubota L4060 Power:

    Engine (gross):42 hp [31.3 kW]
    Engine (net):40 hp [29.8 kW]
    PTO (claimed):34 hp [25.4 kW] (gear)
     32.5 hp [24.2 kW] (hydro)


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Steering:hydrostatic power
    Brakes:wet disc
    Cab:Two-post foldable ROPS. Grand Cab with air-conditioning available with hydrostatic.


    Hydraulics:

    Gear Pump flow:9.8 gpm [37.1 lpm]
    Hydro Pump flow:9.4 gpm [35.6 lpm]
    Gear Total flow:14.7 gpm [55.6 lpm]
    Hydro Total flow:14.1 gpm [53.4 lpm]
    Gear Steering flow:4.9 gpm [18.5 lpm]
    Hydro Steering flow:4.7 gpm [17.8 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator
    ROPS Charging amps:40
    Cab Charging amps:60


    Battery:

    Number:1
    Volts:12
