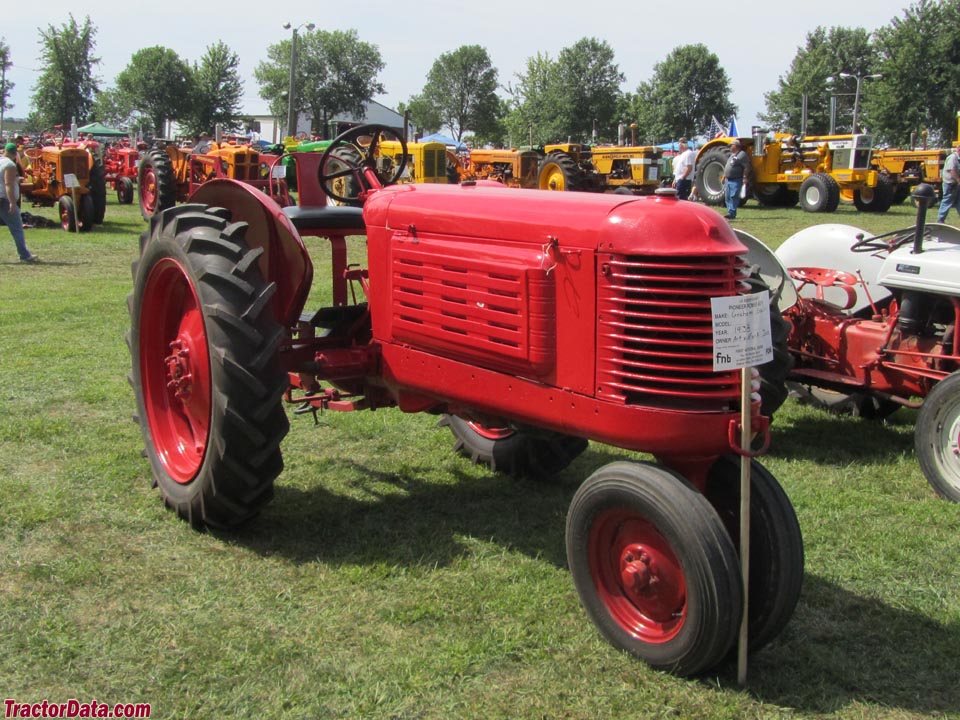

Graham-Bradley 103
| | 1938 - 1939 |
| Row-Crop tractor |
|
| Production |
| Manufacturer: | Graham-Bradley
|
| Type: | Row-Crop tractor
|
| Factory: | Detroit, Michigan, USA
|
| Variants |
| 103: | row-crop
|
| 104: | standard tread
|
| Graham-Bradley 103 Power |
| Plows: | 3 (14-inch)
|
| Drawbar (tested): | 25.20 hp
18.8 kW
|
| Belt (tested): | 30.38 hp
22.7 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed gear
|
 Transmission details ... |
| Belt Pulley |
| Diameter: | 15 inches
38 cm
|
| Width: | 7.25 inches
18 cm
|
| RPM: | 714*The Graham Bradly has advertised at 714 belt RPM. A final drive disconnect lever allowed the use the gear shift to obtain four different speeds, plus reverse, if desired.
|
| Speed: | 2800 ft/min
853.44 meters/min
|
