Pioneer Tractor 30

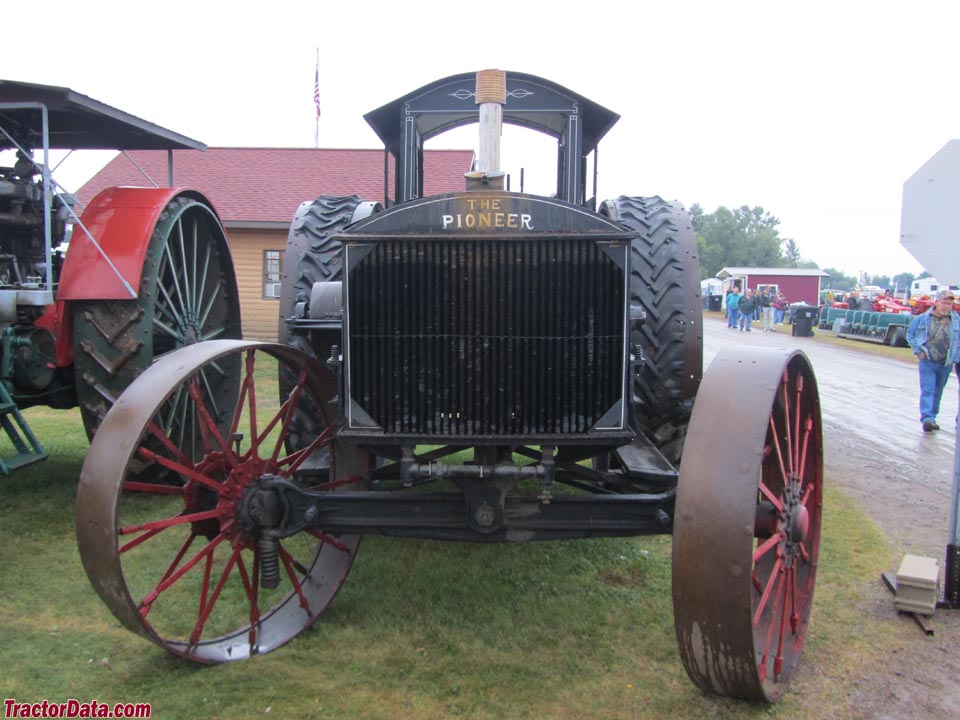

Pioneer Tractor 30 tractor photo
1910 - 1927
Standard-tread tractor
Manufacturer:Pioneer Tractor
Type:Standard-tread tractor
Factory:Winona, Minnesota, USA
Pioneer Tractor 30 Power
Drawbar (claimed):30 hp
22.4 kW
Belt (claimed):60 hp
44.7 kW
Plows:10 (14-inch)
Pioneer Tractor 30 Engine
Pioneer Tractor 20.2L 4-cyl gasoline
Fuel tank:90 gal
340.7 L
Aux. fuel:15 gal
56.8 L
Engine details ...
Chassis:4x2 2WD
Cab:Cab standard with upholstered seat.
Transmission:3-speed gear
Transmission details ...
Dimensions & Tires
Wheelbase:156 inches
396 cm
Weight:23600 lbs
10704 kg
Rear tire:96x24
Full dimensions and tires ...
External Links
Pioneer 30-60: Restoration of a Pioneer 30-60 at Gas Engine Magazine
Belt Pulley
Diameter:18 inches
45 cm
Width:15 inches
38 cm
Speed:2827 ft/min
861.67 meters/min
