Cletrac AG Tests


Cletrac AG tractor photo
1936 - 1942
Agricultural Crawler tractor
Series map:
AG
33.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 260

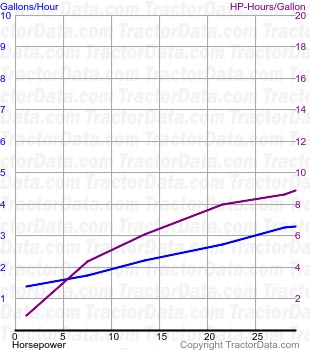

AG fuel use from test 260
Nebraska Tractor Test 260
Gasoline https://digitalcommons.unl.edu/cgi/viewcontent.cgi?article=1888&context=tractormuseumlit crawler
June 16 - 26, 1936
Belt power (max)30.25 hp
22.6 kW
Belt fuel use (max)3.5 gal/hour
13.2 l/hour
Drawbar performance
Max power24.44 hp
18.2 kW
Gear 2 used for power test.
Max pull5254 lbs
2383 kg
Gear 1 used for pull test.
