TractorData.com - information on all makes and models of tractors
Tractors > Massey Ferguson > GC1715

Massey Ferguson GC1715

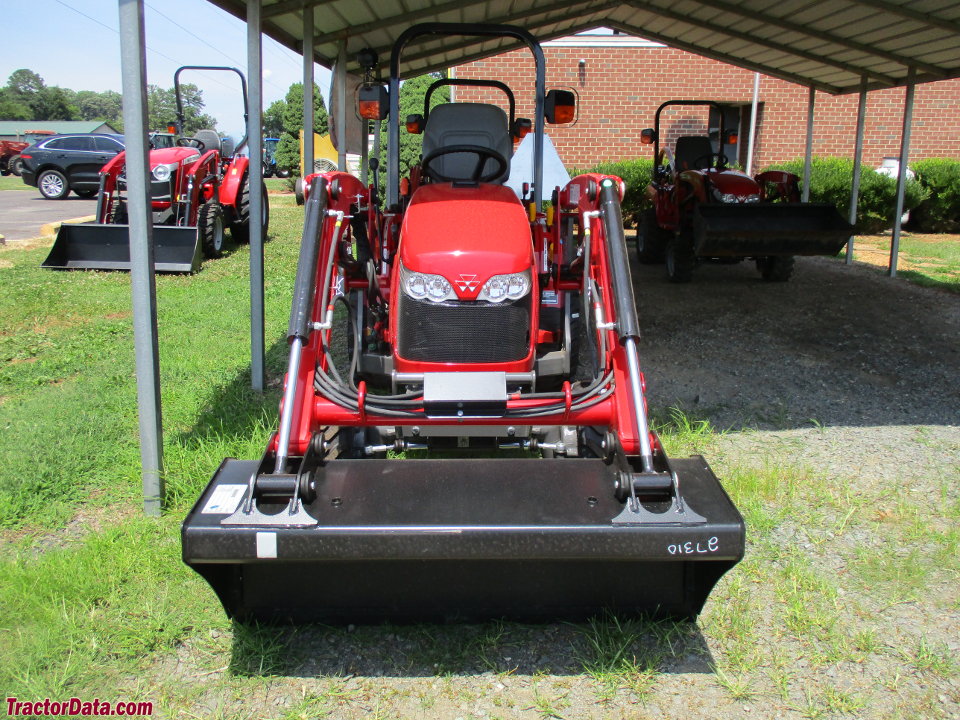

Massey Ferguson GC1715 tractor photo
2013 -    GC1700 Series
Sub-Compact Utility tractor
Previous model:Massey Ferguson GC2600
Series back:Massey Ferguson GC1705






Production:

Distributor:Massey Ferguson
Manufacturer:Iseki
Original price (USD)
   $12,165 (2013 )


Variants:

GC1715:tractor
GC1720:backhoe-loader


Massey Ferguson GC1715 Engine:

   Iseki 1.1L 3-cyl diesel
full engine details ...


Capacity:



3-Point Hitch:

Rear Type:I
Rear lift (at ends):1190 lbs [539 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
Mid PTO:independent
Mid RPM:2000


Dimensions & Tires:

Wheelbase:57.1 inches [145 cm]
Weight:1433 lbs [650 kg]
Front tire:18x8.50-10
Rear tire:26x12.00-12
full dimensions and tires ...


Massey Ferguson GC1715 attachments:

 mowing deck
 front-end loader
all GC1715 attachments ...


GC1715 Serial Numbers:


- Serial numbers unknown -



Massey Ferguson GC1715 Power:

Engine (gross):25 hp [18.6 kW]
PTO (claimed):19.6 hp [14.6 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post folding ROPS.


Hydraulics:

Type:open center
SCV flow:4.8 gpm [18.2 lpm]
Total flow:6.8 gpm [25.7 lpm]
Steering flow:2 gpm [7.6 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
