Tractors > Landini > Globus 75

Landini Globus 75

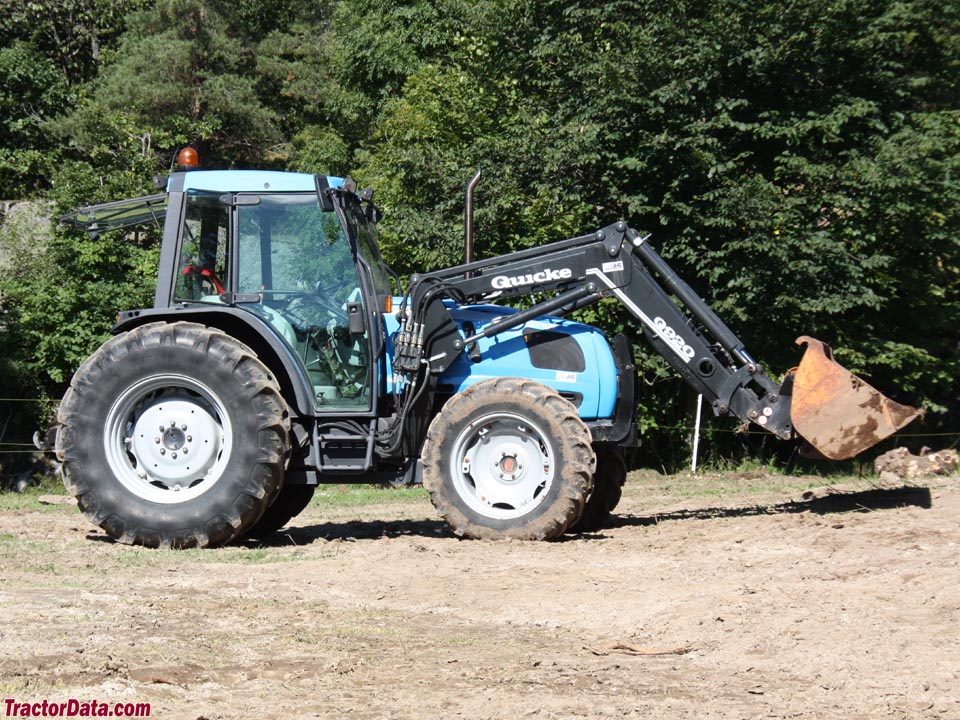

Landini Globus 75 tractor photo
1999 - 2001   Globus Series
Utility tractor
Previous model:Landini Globus 70
Next model:Landini Globus 80
Series back:Landini Globus 65






Production:

Manufacturer:Landini


Variants:

Globus 75 GT:low-profile


Landini Globus 75 Engine:

   Perkins 4.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:17.7 gal [67.0 L]
 9 gal [34.1 L] (aux. tank)


3-Point Hitch:

Rear Type:2
Control:position and draft control
Rear lift:4,600 lbs [2086 kg]
 7,500 lbs [3402 kg] (optional)


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000/ground
 540/750/ground


Dimensions & Tires:

4WD Wheelbase:85 inches [215 cm]
GT Wheelbase:85.3 inches [216 cm]
Weight:6,724 lbs [3050 kg]
Front tire:7.50-16
Rear tire:14.9R30 (2WD)
full dimensions and tires ...


Globus 75 Serial Numbers:


- Serial numbers unknown -



Landini Globus 75 Power:

Engine:74 hp [55.2 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lock:mechanical
Steering:hydrostatic power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic optional


Hydraulics:

Pressure:2600 psi [179.3 bar]
Valves:2 or 3
SCV flow:14.2 gpm [53.7 lpm]
Total flow:22.2 gpm [84.0 lpm]


Electrical:

Ground:negative


Battery:

Volts:12


Page information:

Last update:May 12, 2014
