Tractors > John Deere > 7920

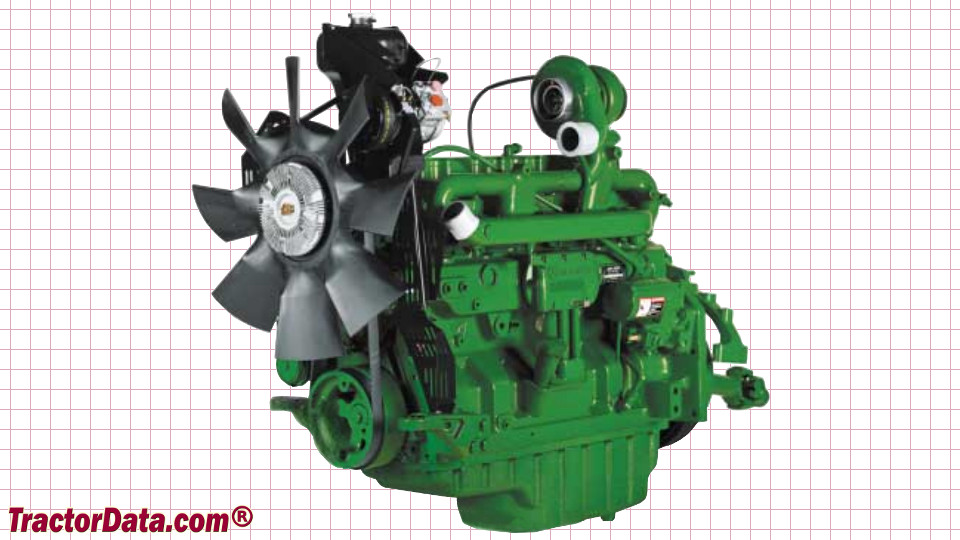

John Deere 7920 - engine

John Deere 7920 tractor photo
2003 - 2006   7020 Series
Row-Crop tractor
Series back:John Deere 7820
more John Deere 7920 specifications...






Engine Detail:

 John Deere
 turbocharged intercooled diesel
 6-cylinder
 liquid-cooled
 496 ci [8.1 L]
Bore/Stroke:4.56x5.06 inches [116 x 129 mm]
Rated Power (ECE R24):200 hp [149.1 kW]
Rated Power (EC 97/98):208 hp [155.1 kW]
Maximum Power (ECE R24):215 hp [160.3 kW]
Maximum Power (EC 97/68):223 hp [166.3 kW] *With 50KPH transmission a transport boost up to 243HP was available.
Fuel system:high-pressure common rail
Air cleaner:dual paper elements
Compression:16.5:1
Rated RPM:2100
Idle RPM:875-2200
Torque:714.7 lb-ft [969.1 Nm]
Torque RPM:1400
Starter volts:12
Oil capacity:25.4 qts [24.0 L]
Coolant capacity:35.1 qts [33.2 L]
