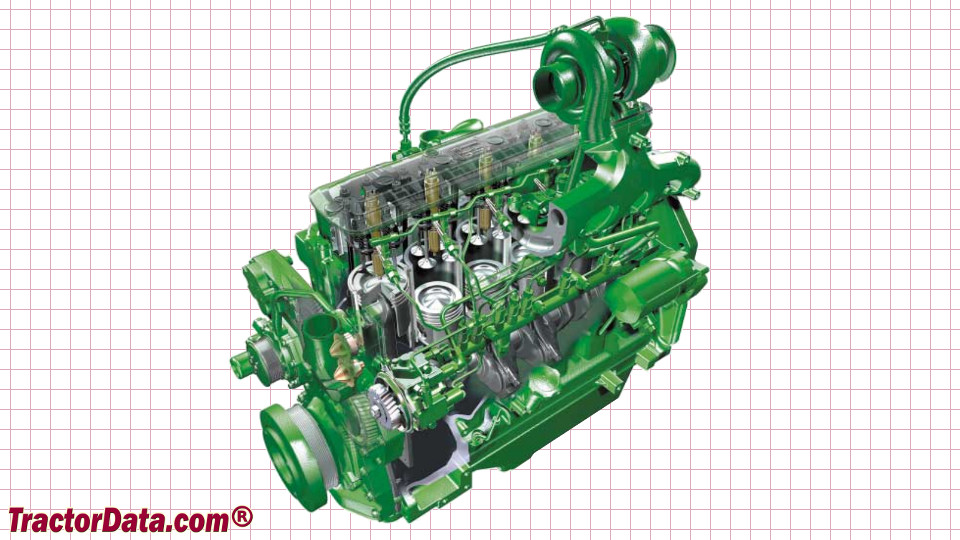

John Deere 7820 - engine

John Deere 7820 tractor photo
2003 - 2006   7020 Series
Row-Crop tractor
Series next:John Deere 7920
Series back:John Deere 7720
more John Deere 7820 specifications...






Engine Detail:

 John Deere
 turbocharged intercooled diesel
 6-cylinder
 liquid-cooled
 414 ci [6.8 L]
Bore/Stroke:4.19x5.00 inches [106 x 127 mm]
Rated Power (ECE R24):185 hp [138.0 kW]
Rated Power (EC 97/98):192 hp [143.2 kW]
Maximum Power (ECE R24):197 hp [146.9 kW]
Maximum Power (EC 97/68):203 hp [151.4 kW] *With 50KPH transmission a transport boost up to 220HP was available.
Fuel system:high-pressure common rail
Compression:17:1
Rated RPM:2100
Idle RPM:875-2200
Torque:666 lb-ft [903.1 Nm]
Torque RPM:1400
Firing order:1-5-3-6-2-4
Starter volts:12
Oil capacity:27.5 qts [26.0 L]
Coolant capacity:31.1 qts [29.4 L]
