Yanmar Lx4500

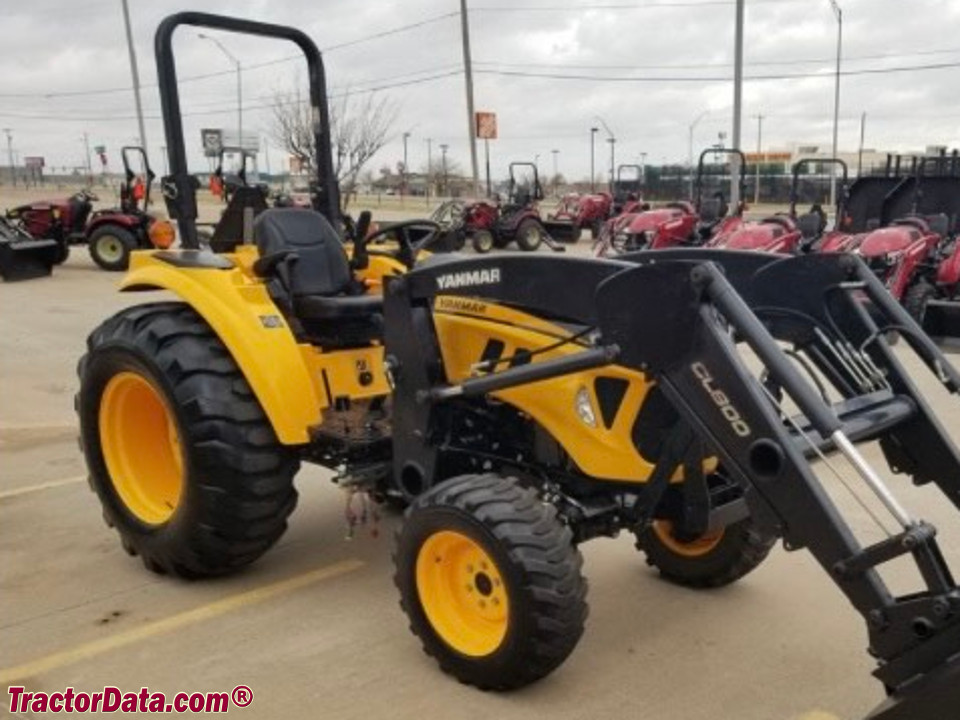

Yanmar Lx4500 tractor photo
2012 -
Lx Series
Compact Utility tractor
Series:Lx4100Lx4500Lx4900
Production
Manufacturer:Yanmar
Type:Compact Utility tractor
Variants
Lx450:shuttle
Lx4500:hydro
Yanmar Lx4500 Power
Engine (gross):45 hp
33.6 kW
PTO (claimed):32.5 hp
24.2 kW
Yanmar Lx4500 Engine
Yanmar 2.2L 4-cyl diesel
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:planetary
Steering:hydraulic power
Brakes:wet disc
Cab:Two-post ROPS.
Transmission:hydrostatic
Transmission details ...
Photos
No photos of the Yanmar Lx4500 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel:11.9 gal
45.0 L
Front axle:9.28 qts
8.8 L
Hydraulics
Type:open center
Valves:2 to 3
Pump flow:9.0 gpm
34.1 lpm
Steering flow:6.8 gpm
25.7 lpm
Tractor hitch
Rear Type:1
Control:position control
Rear lift (at 24"/610mm):2,760 lbs
1251 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540
Mid PTO:optional
Dimensions & Tires
Wheelbase:74.8 inches
189 cm
Weight:3,585 lbs
1626 kg
Front tire:8-16
Rear tire:14.9-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
