Tractors > New Holland > TD5050

New Holland TD5050

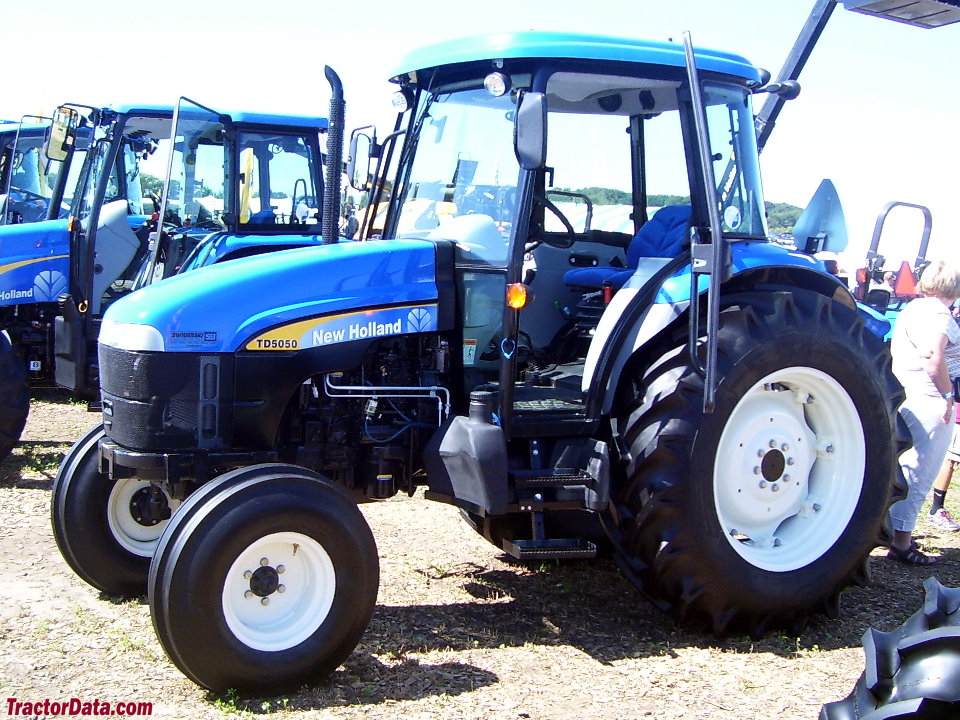

New Holland TD5050 tractor photo
2009 -    TD5000 Series
Utility tractor
Series back:New Holland TD5030





The New Holland TD5050 is the similar to the Case IH Farmall 95.


Production:

Distributor:New Holland
Manufacturer:Turk Tractor
Factory:Ankara, Turkey


Variants:

TD5050HC:high-crop


New Holland TD5050 Engine:

   Iveco 4.5L 4-cyl diesel
full engine details ...


Capacity:

Fuel:23.8 gal [90.1 L]
 30.8 gal [116.6 L] (optional)


3-Point Hitch:

Rear Type:II
Control:mechanical lower-link draft sensing
Rear lift (at 24"/610mm):5,025 lbs [2279 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:11-inch dry organic plate
Rear RPM:540
 540/1000 (optional)


Dimensions & Tires:

2WD Wheelbase:94 inches [238 cm]
4WD Wheelbase:91.8 inches [233 cm]
Weight:6702 to 8333 pounds
full dimensions and tires ...


New Holland TD5050 attachments:

 front-end loader
all TD5050 attachments ...


TD5050 Serial Numbers:


- Serial numbers unknown -



New Holland TD5050 Power:

Engine (gross):93 hp [69.4 kW]
PTO (claimed):80 hp [59.7 kW]
Drawbar (tested):74.4 hp [55.5 kW]
PTO (tested):80.7 hp [60.2 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Cab:Platform with ROPS. Cab optional with heat and air-conditioning.


Hydraulics:

Type:open center fixed displacement gear pump
Pressure:2,755 psi [190.0 bar]
Rear valves:1 to 3
Pump flow:16.1 gpm [60.9 lpm]
Total flow:25.6 gpm [96.9 lpm]
Steering flow:9.5 gpm [36.0 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:65


Battery:

Number:1
Cold-cranking amps:800
Volts:12
