CaseIH Farmall 140A Transmission

CaseIH Farmall 140A tractor photo
2012 - 2022
Model year
Farmall 100A Series
Utility tractor
Series:Farmall 125AFarmall 140A
Transmissions overview
8-speed power shuttle
8-speed synchronized shuttle
16-speed power shuttle
Type:power shuttle
Gears:8 forward and reverse
With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

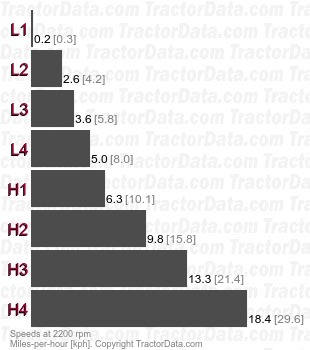

Farmall 140A  power shuttle speeds
Type:synchronized shuttle
Gears:8 forward and reverse
Type:power shuttle
Gears:16 forward and 8 reverse
Adds under-drive to power shuttle transmission.

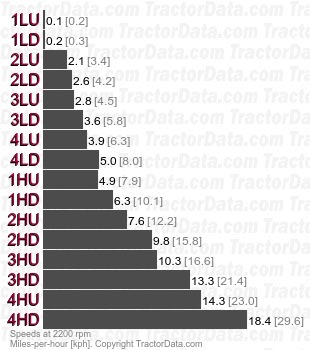

Farmall 140A Hi-Lo power shuttle speeds
