Tractors > John Deere > 6920 Premium

John Deere 6920 Premium

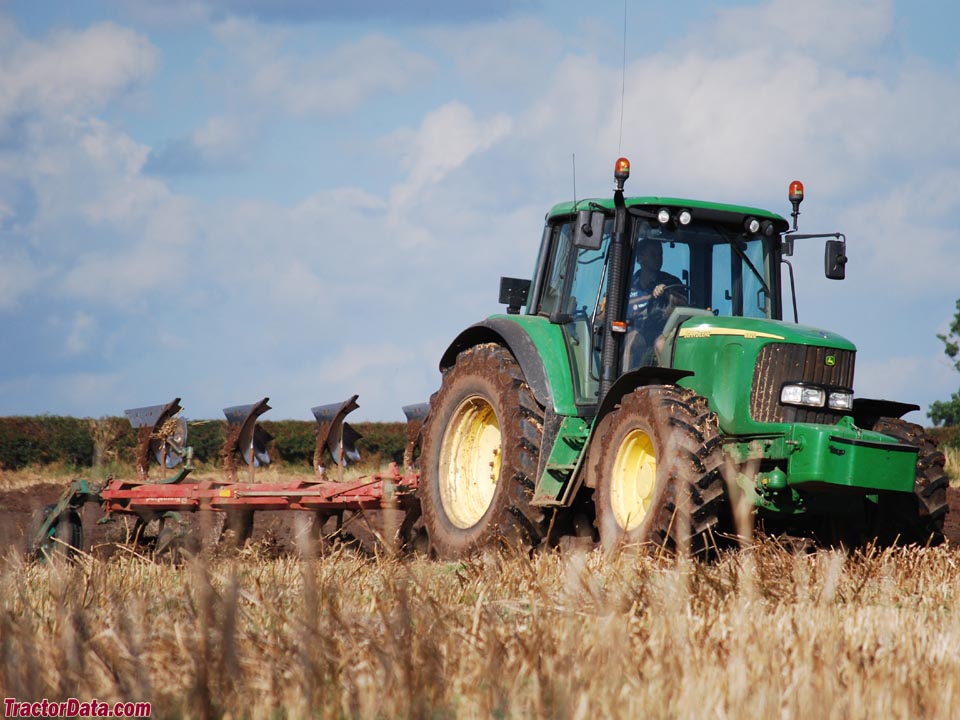

John Deere 6920 Premium tractor photo
2001 - 2006   6020 Series
Model years
Utility tractor
Series back:John Deere 6820 Premium






Production:

Manufacturer:John Deere


John Deere 6920 Premium Engine:

   John Deere 6.8L 6-cyl diesel
full engine details ...


Capacity:

Fuel:66.1 gal [250.2 L]


3-Point Hitch:

Rear Type:II/IIIN
Rear lift:18,520 lbs [8400 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000


Dimensions & Tires:

Weight:12,965 lbs [5880 kg]
Front tire:16.9R28
Rear tire:20.8R38
full dimensions and tires ...


6920 Premium Serial Numbers:

Location:Right side of main tractor frame.

- Serial numbers unknown -



John Deere 6920 Premium Power:

Engine (net):150 hp [111.9 kW]
PTO (claimed):134 hp [99.9 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Cab standard.


Hydraulics:

Type:closed center load sensing
Pressure:2900 psi [200.0 bar]
Pump flow:25.4 gpm [96.1 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:90
 115


Battery:

Volts:12
