John Deere 6405
| | 1998 - 2005 |
| Utility tractor |
|
| Production |
| Manufacturer: | John Deere
|
| Type: | Utility tractor
|
| John Deere 6405 Power |
| Engine: | 106 hp
79.0 kW
|
| PTO (claimed): | 90 hp
67.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Open operator station. Cab optional.
|
| Transmissions: | 12-speed fully synchronized
|
| | 16-speed partial power shift
|
 Transmission details ... |
| Capacity |
| Fuel: | 40.7 gal
154.0 L
|
| Hydraulic system: | 14.3 gal
54.1 L
|
| Front axle: | 7.1 qts
6.7 L
|
| Front hubs: | 0.8 qts
0.8 L *Each
|
| Hydraulics |
| Type: | constant flow gear pump
|
| Capacity: | 14.3 gal
54.1 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 17.44 gpm
66.0 lpm
|
| SCV flow: | 15.85 gpm
60.0 lpm
|
| Oil type: |
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | electronic lower link
|
| Rear lift (at ends): | 8378 lbs
3800 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| ROPS Charging amps: | 52
|
| Cab Charging amps: | 75
|
| Battery volts: | 12
|
| Battery AH: | 100
|
| Page information |
| Last update: | March 12, 2019
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

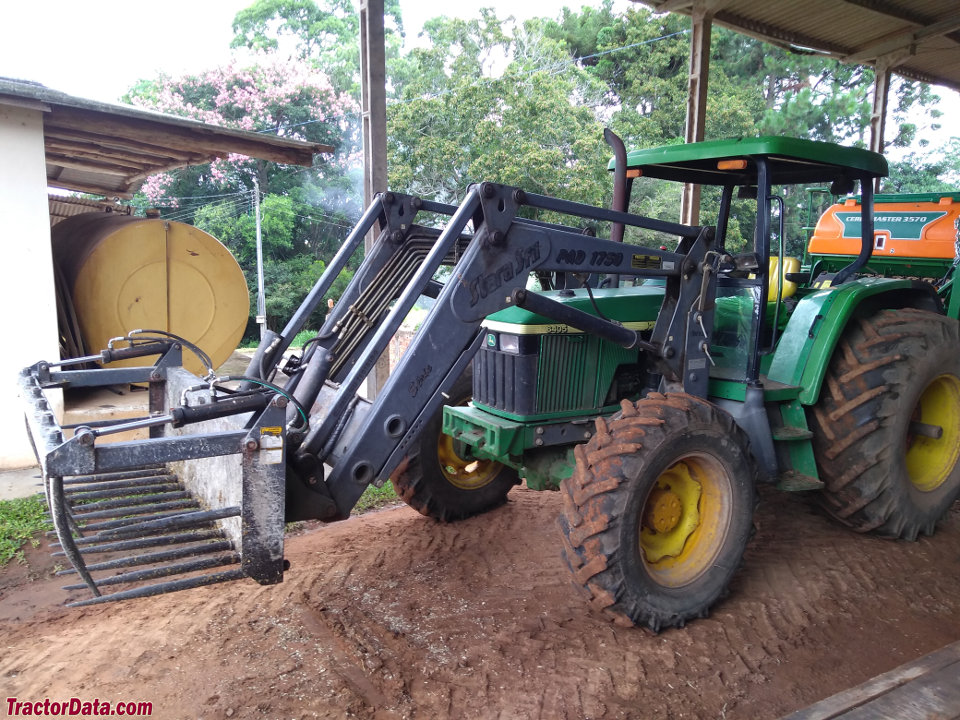

John Deere 6405 photos...
