John Deere 6405 Engine


John Deere 6405 tractor photo
1998 - 2005
Utility tractor
Series map:
6405
6605
79.0kw
90.2kw
Engine Detail
John Deere 4045T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.15x5.00 inches
105 x 127 mm
Power106 hp
79.0 kW
Rated RPM2300
Torque328 lb-ft
444.8 Nm
Torque RPM1500
Starterelectric
Starter volts12
Coolant capacity16.9 qts
16.0 L
Engine Oil

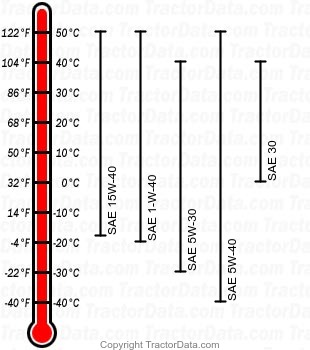

6405 diesel engine oil chart
Oil capacity12.7 qts
12.0 L
