Tractors > Cockshutt > 1855

Cockshutt 1855 - transmission

Cockshutt 1855 tractor photo
1970 - 1975
Row-Crop tractor
Series next:Cockshutt 1955
Series back:Cockshutt 1755
more Cockshutt 1855 specifications...





Note: the Cockshutt model 1855 is the same as the White 1855. The following data is from the 1855 listing.


Transmission:

Type:gear
Gears:6 forward and 2 reverse
Clutch:330mm cerametallic disc
Speeds:With 18.4-34 rear tires.
1855  gear speeds


Transmission:

Transmission:Hydraul-Shift
Type:partial power shift
Gears:18 forward and 6 reverse
Clutch:330mm cerametallic disc
The Hydraul-Shift overs a power shift between over-, under-, and direct-drive for each gear.
Speeds:With 18.4-34 rear tires.

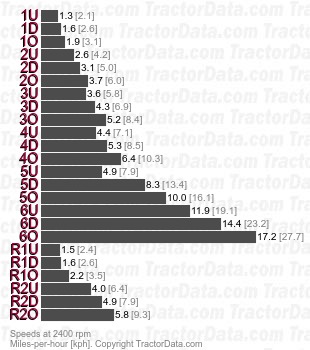

1855 Hydraul-Shift partial power shift speeds
