Cockshutt 1550 Transmission


Cockshutt 1550 tractor photo
1965 - 1969
Row-Crop tractor
Series:15501650

Note: the Cockshutt model 1550 is the same as the Oliver 1550. The following data is from the 1550 listing.
Transmissions overview
12-speed partial power shift
6-speed unsynchronized gear
Transmission
Transmission:Hydra-Power
Type:partial power shift
Gears:12 forward and 4 reverse
Clutch:279.4mm dry disc
Oil capacity:32 qts
30.3 L
The Hydra-Power transmission provides a two-speed power shift between direct-drive and the lower Hydra-Power range.
Speeds

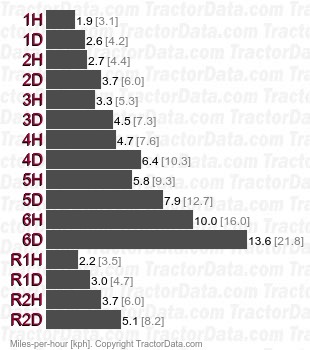

1550 Hydra-Power partial power shift speeds
Transmission
Type:unsynchronized gear
Gears:6 forward and 2 reverse
Clutch:279.4mm dry disc
Oil capacity:32 qts
30.3 L
Speeds

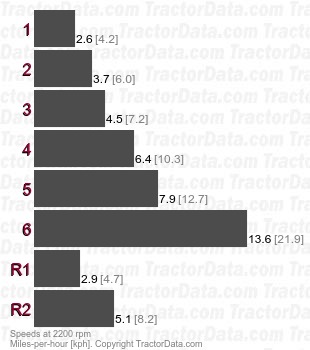

1550  unsynchronized gear speeds
