Cockshutt 1600
| | 1963 - 1964 |
| Row-Crop tractor |
|
Note: the Cockshutt model 1600 is the same as the Oliver 1600 Series A. The following data is from the 1600 Series A listing. |
| Production |
| Manufacturer: | Cockshutt
|
| Type: | Row-Crop tractor
|
| Factory: | Charles City, Iowa, USA
|
| Variants |
| Row-Crop: | tricycle front
|
| Wheatland: | standard-front axle
|
| High-Clearance: | extended ground clearance
|
| Cockshutt 1600 Power |
| Gas Drawbar (claimed): | 51.5 hp
38.4 kW
|
| LP-gas Drawbar (claimed): | 47.5 hp
35.4 kW
|
| Gas PTO (claimed): | 60 hp
44.7 kW
|
| LP-gas PTO (claimed): | 56 hp
41.8 kW
|
| Plows: | 4-5
|
| Drawbar (tested): | 47.09 hp
35.1 kW
|
| PTO (tested): | 57.95 hp
43.2 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| | power-assist optional
|
| Brakes: | differential mechanical dry disc
|
| Cab: | Open operator station.
|
| Transmissions: | 6-speed gear
|
| | 12-speed partial power shift
|
 Transmission details ... |
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| 1600 Serial Numbers |
| Location: | Serial plate on instrument panel.
|
| 1962: | 124-420 (A)
|
| 1963: | 127-044 (A)
|
| 1963: | 137-613 (B)
|
| 1964: | 140-723 (B)
|
| Final: | 147-568 (B)
|
how to read serial numbers...
|
| Page information |
| Last update: | June 24, 2013
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

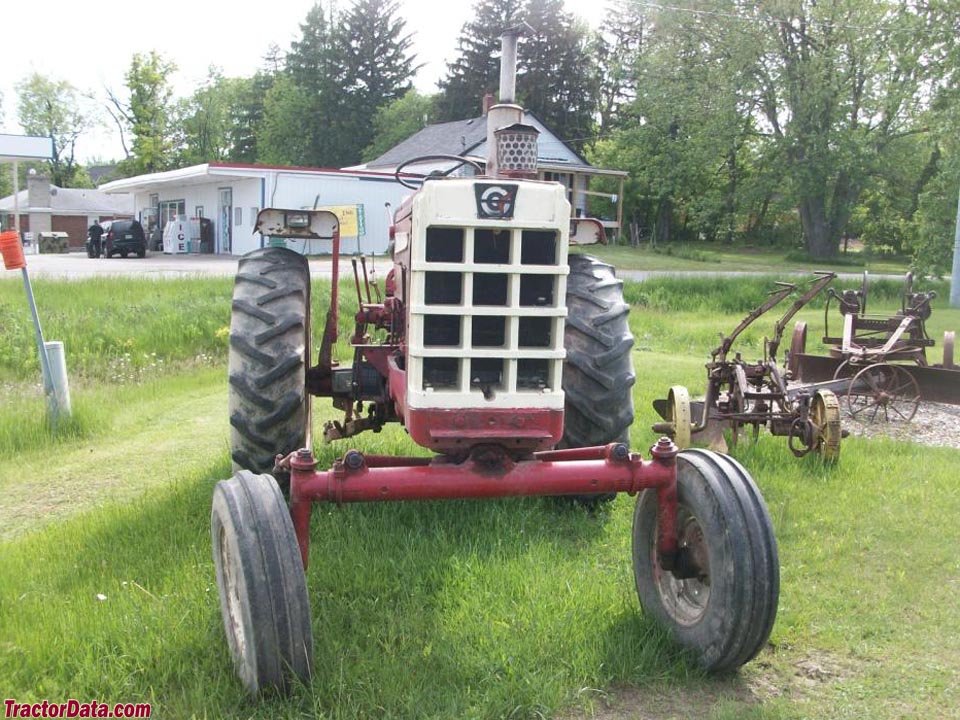

Cockshutt 1600 photos...
