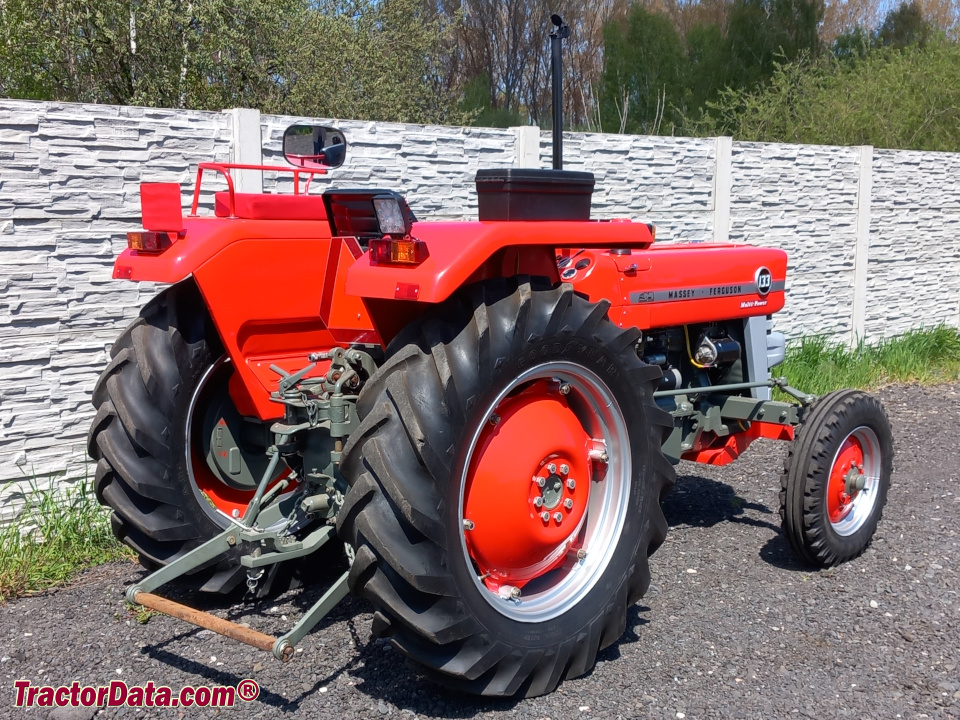

Massey Ferguson 133
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Utility tractor | |
| Built in Beauvais, France | |
| Massey Ferguson 133 Engine | |
| Perkins 2.4L 3-cyl diesel | |
 Engine details ... |
| Massey Ferguson 133 Transmissions | |
| 6-speed gear | |
| 8-speed gear | |
 Transmission details ... |
| Massey Ferguson 133 Power | |
| Engine | 37.5 hp 28.0 kW |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. ROPS optional. |
| Capacity | |
| Fuel | 12.6 gal 47.7 L |
| Hydraulic system | 7.1 gal 26.9 L |
| Hydraulics | |
| Capacity | 7.1 gal 26.9 L |
| Pressure | 2490 psi 171.7 bar |
| Pump flow | 4.8 gpm 18.2 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | position and draft control |
| Rear lift | 3150 lbs 1428 kg |
| Power Take-off (PTO) | |
| Rear PTO | live |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1700 |
| Dimensions & Tires | |
| Wheelbase | 74.4 inches 188 cm |
| Weight | 3175 lbs 1440 kg |
| Front tire | 6.00-16 |
| Rear tire | 12.4/11-28 |
 Full dimensions and tires ... | |
| References | |
 | |
| User and Maintenance Manual (1.646.062) published in 1973 |
