Tractors > John Deere > 6930

John Deere 6930

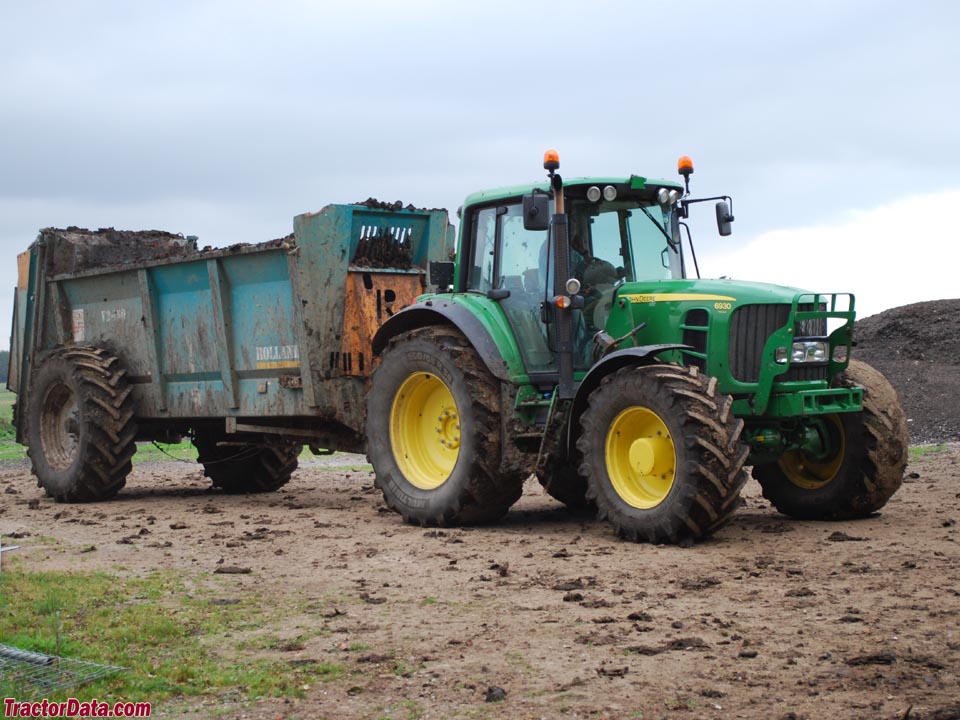

John Deere 6930 tractor photo
2006 - 2011
Model year
Series map:
6830
6930
104.4kw
115.6kw
Production
ManufacturerJohn Deere
John Deere 6930 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...
John Deere 6930 Transmissions
20-speed partial power shift
32-speed partial power shift
Transmission details ...
John Deere 6930 Power
Engine (gross)155 hp
115.6 kW
Engine (net)150 hp
111.9 kW
Engine (max)163 hp
121.5 kW
PTO (claimed)135 hp
100.7 kW
Mechanical
Four-wheel drive
Differential lockrear electro-hydraulic wet disc
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos
John Deere 6930
John Deere 6930 photos...
Capacity
Fuel66 gal
249.8 L
Optional Fuel85.9 gal
325.1 L
Hydraulic system13.2 gal
50.0 L
Hydraulics
Typeconstant flow
 pressure and flow compensated optional (PFC)
Capacity13.2 gal
50.0 L
Pressure2,901 psi
200.0 bar
Pump flow21.4 gpm
81.0 lpm
PFC Pump flow29.1 gpm
110.1 lpm
Tractor hitch
Rear TypeII/IIIN
Controlload and depth control with electronic lower-link sensing
Rear lift16,730 lbs
7588 kg
 18,880 lbs (optional)
8563 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/540E/1000
Engine RPM540@1995
 540E@1743
 1000@1995
Front PTO Type1000
Engine RPM1000@1995
Dimensions & Tires
Wheelbase104.3 inches
264 cm
Weight12,420 lbs
5633 kg
Front tire16.9R28
Rear tire20.8R38
Full dimensions and tires ...
6930 Serial Numbers
Location:Front-right side of main tractor frame, above front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Optional Charging amps154
Battery volts12
