Tractors > John Deere > 6930

John Deere 6930 - transmission

John Deere 6930 tractor photo
2006 - 2011
Model years
Series back:John Deere 6830
more John Deere 6930 specifications...






Transmission:

Transmission:John Deere PowrQuad Plus
Type:partial power shift
Gears:20 forward and reverse
Clutch:dual 225mm wet disc PermaClutch
Oil capacity:52.8 qts [50.0 L]
Four gears (1-4) in five ranges (A-E) with left-hand shuttle lever. Push-button power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are about 4% faster than corresponding forward speeds.
Speeds:
6930 PowrQuad Plus partial power shift speeds


Transmission:

Transmission:John Deere PowrQuad Plus Creeper
Type:partial power shift
Gears:32 forward and reverse
Clutch:dual 225mm wet disc PermaClutch
Oil capacity:52.8 qts [50.0 L]
Optional creeper adds an additional twelve speeds to the PowrQuad transmission in ranges A-C.
Speeds:

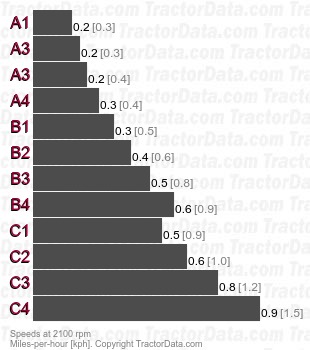

6930 PowrQuad Plus Creeper partial power shift speeds
