Tractors > Bolens > G172

Bolens G172 - transmission

Bolens G172 tractor photo
1978 - 1981
Sub-Compact Utility tractor
Series next:Bolens G174
Series back:Bolens G154
more Bolens G172 specifications...






Transmission:

Type:unsynchronized gear
Gears:6 forward and 2 reverse
Clutch:dry disc
Oil capacity:13 qts [12.3 L]
Three gears (1-3) plus reverse (R) with additional high-low range shift. Tractor must be stopped, and clutch used, to shift gears and range.
Speeds:

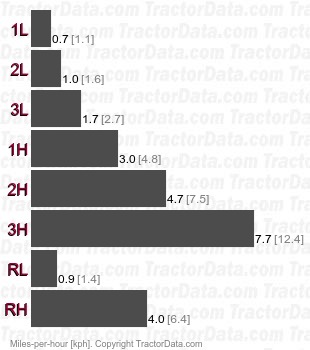

G172  unsynchronized gear speeds
