    Farmall Super MV - transmission

    Farmall Super MV tractor photo
    1952 - 1954
    High-Clearance tractor
    Previous model:Farmall MV
    Next model:Farmall 400 Hi-Clear
    more Farmall Super MV specifications...






    Transmission:

    Type:sliding gear
    Gears:5 forward and 1 reverse
    Clutch:12-inch dry disc
    Oil capacity:52 qts [49.2 L]
    Speeds:With 13-36 rear tires.

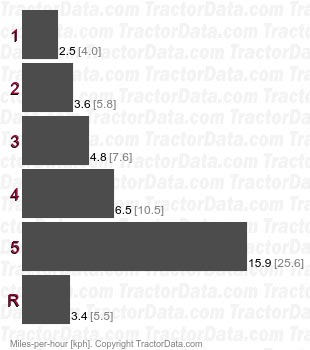

    Super MV sliding gear speeds


    Transmission:

    Transmission:Torque Amplifier
    Type:partial power shift
    Gears:10 forward and 2 reverse
    The Torque Amplifier became available in 1954, the final year of production.
