Farmall 706 Hi-Clear
|
|
| Production | |
| Manufacturer: | Farmall (a part of International Harvester) |
| Type: | High-Clearance tractor |
| Variants | |
| Farmall 706: | row-crop |
| IH 706: | standard-tread |
| IH 2706: | industrial |
| 706 Hi-Clear: | high-crop |
| Farmall 706 Hi-Clear Power | |
| Engine (gross): | 89 hp 66.4 kW |
| Drawbar (claimed): | 65 hp 48.5 kW |
| PTO (claimed): | 73.5 hp 54.8 kW |
| Drawbar (tested): | 67.46 hp 50.3 kW |
| PTO (tested): | 76.56 hp 57.1 kW |
| Farmall 706 Hi-Clear Engines | |
| International Harvester 4.6L 6-cyl diesel | |
| International Harvester 5.1L 6-cyl diesel | |
| International Harvester 4.3L 6-cyl gasoline | |
| Interntional Harvester 4.8L 6-cyl gasoline | |
 Engine details ... |
| Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | hydrostatic power |
| Brakes: | hydraulic dry double disc |
| Cab: | Cab optional, A/C available starting in 1966 |
| Transmissions: | 8-speed |
| 16-speed | |
 Transmission details ... | |
| Capacity | |
| Fuel: | 33 gal 124.9 L (gas/diesel) |
| 39 gal 147.6 L (LP gas) | |
| Hydraulic system: | 17 gal 64.3 L |
| Hydraulics | |
| Type: | open center |
| Capacity: | 17 gal 64.3 L |
| Valves: | 1 or 2 |
| Pump flow: | 12 gpm 45.4 lpm |
| 17 gpm 64.3 lpm (optional) | |
| 3 gpm 11.4 lpm (PTO pump) | |
| Steering flow: | 9 gpm 34.1 lpm |
| Tractor hitch | |
| Rear Type: | 2 |
| Type: | IH Fast Hitch |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| 1000 | |
| Engine RPM: | 540@2100 1000@2100 |
| Dimensions & Tires | |
| Wheelbase: | 102 inches 259 cm |
| Weight: | 8670 to 8950 pounds |
| Front tire: | 6.00-20 |
| Rear tire: | 15.5-38 |
 Full dimensions and tires ... | |
| 706 Hi-Clear Serial Numbers | |

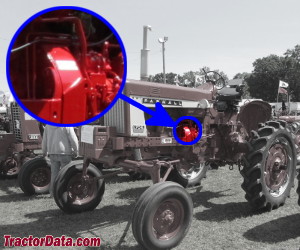

| Location: | Tractor's clutch housing on left side |
| 1963: | 501 |
| 1964: | 7073 |
| 1965: | 21162 |
| 1966: | 30288 |
| 1967: | 38521 |
| Final: | 46647 |
| Belt Pulley | |
| Diameter: | 11 inches 27 cm |
| Width: | 7.5 inches 19 cm |
| RPM: | 1055 |
| Speed: | 3,038 ft/min 925.98 meters/min |
| Electrical | |
| Ground: | negative |
| Charging amps: | 25 (generator) |
| 32 (alternator) | |
| Batteries: | 1 (gas) |
| 2 (diesel) | |
| Battery volts: | 12 (gas) |
| 6 (diesel) | |
| Battery AH: | 60 (gas/LP) |
| 130 (diesel) | |
