Massey-Harris 44 Standard

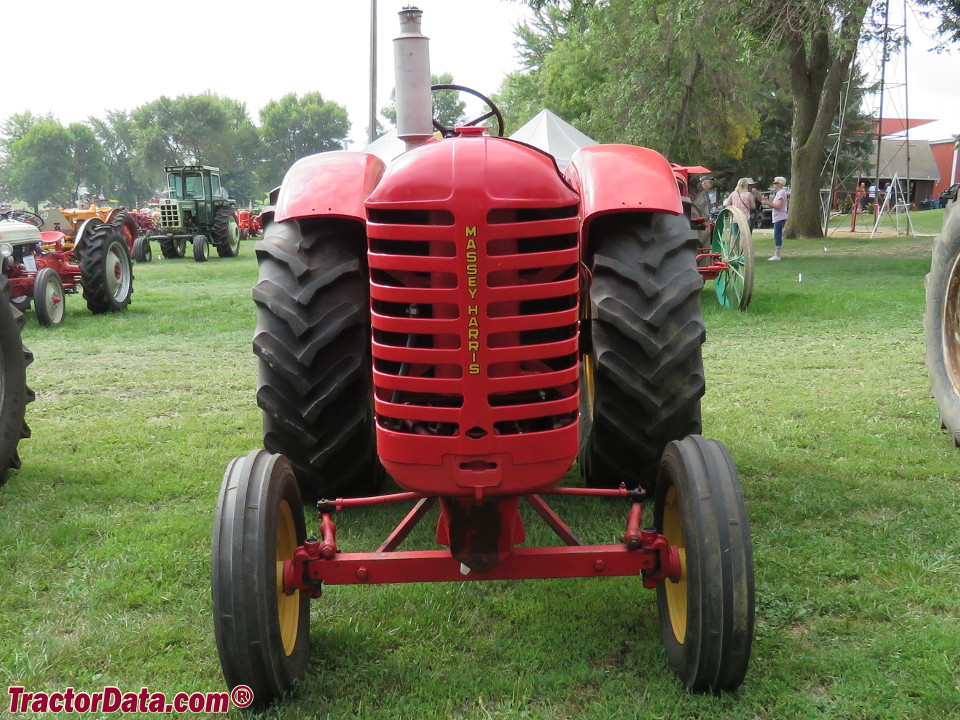

Massey-Harris 44 Standard tractor photo
1947 - 1953
Standard-tread tractor
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA
Total built:84,000
44 Row-Crop:tricycle front
44 Standard:fixed, wide-front
44-6:6-cyl engine
Massey-Harris 44 Standard Power
Engine:45 hp
33.6 kW
Drawbar (claimed):31 hp
23.1 kW
PTO (claimed):44 hp
32.8 kW
Drawbar (tested):37.91 hp
28.3 kW
Belt (tested):41.82 hp
31.2 kW
power test details ...
Massey-Harris 44 Standard Engines
Continental 4.3L 4-cyl gasoline
Continental 4.3L 4-cyl diesel
Massey-Harris 4.3L 4-cyl tractor fuel
Massey-Harris 4.3L 4-cyl LP gas
Engine details ...
Chassis:4x2 2WD
Brakes:differential mechanical drum
Cab:Open operator station.
Transmission:5-speed unsynchronized gear
Transmission details ...
Fuel:23 gal
87.1 L
Aux. fuel:5.75 gal
21.8 L
Hydraulic system:1.75 gal
6.6 L
Capacity:1.75 gal
6.6 L
Pressure:1050 psi
72.4 bar
Total flow:7.5 gpm
28.4 lpm
Tractor hitch
Type:Massey Hitch-All
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:534
Dimensions & Tires
Wheelbase:80 inches
203 cm
Weight:4,600 lbs
2086 kg
Front tire:6.00-16
Rear tire:13-30
Full dimensions and tires ...
44 Standard Serial Numbers

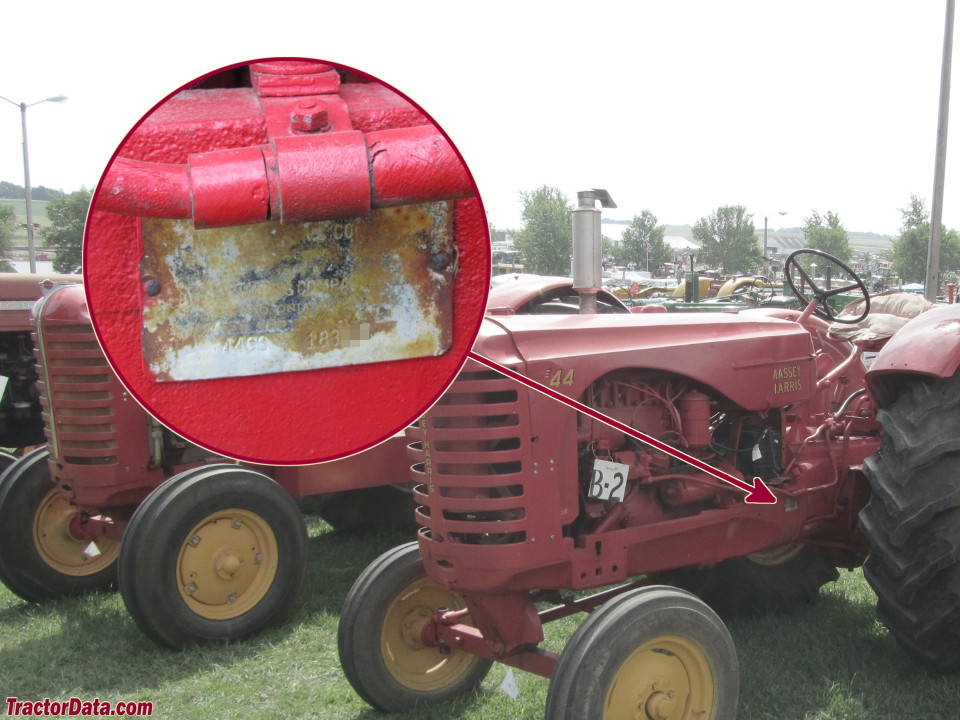

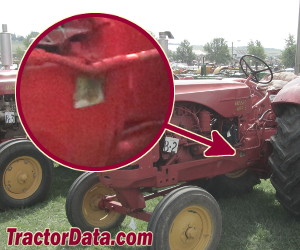

Location:Serial number plate on the side of the tractor's main frame, just ahead of the operator platform. May be on left or right.
photo of 44 Standard serial number

1946:1001 (gas)
1947:1141 (gas)
1948:1871 (gas)
1949:4528 (gas)
1950:9581 (gas)
1951:13726 (gas)
1952:17059 (gas)
1953:43700 (gas)
1946:1001 (kerosene)
1947:1011 (kerosene)
1948:3598 (kerosene))
1949:3598 (kerosene)
1950:4827 (kerosene)
1951:6019 (kerosene)
1952:6787 (kerosene)
1953:43700 (kerosene)
1948:1001 (diesel)
1949:1023 (diesel)
1950:2180 (diesel)
1951:3989 (diesel)
1952:5639 (diesel)
1953:43700 (diesel)
1952:1001 (LP-gas)

how to read serial numbers...

Belt Pulley
Diameter:13.5 inches
34 cm
Width:6 inches
15 cm
Speed:3,050 ft/min
929.64 meters/min
Charging system:generator
Batteries:1 (gas)
 2 (diesel)
Battery volts:6
