John Deere 6300

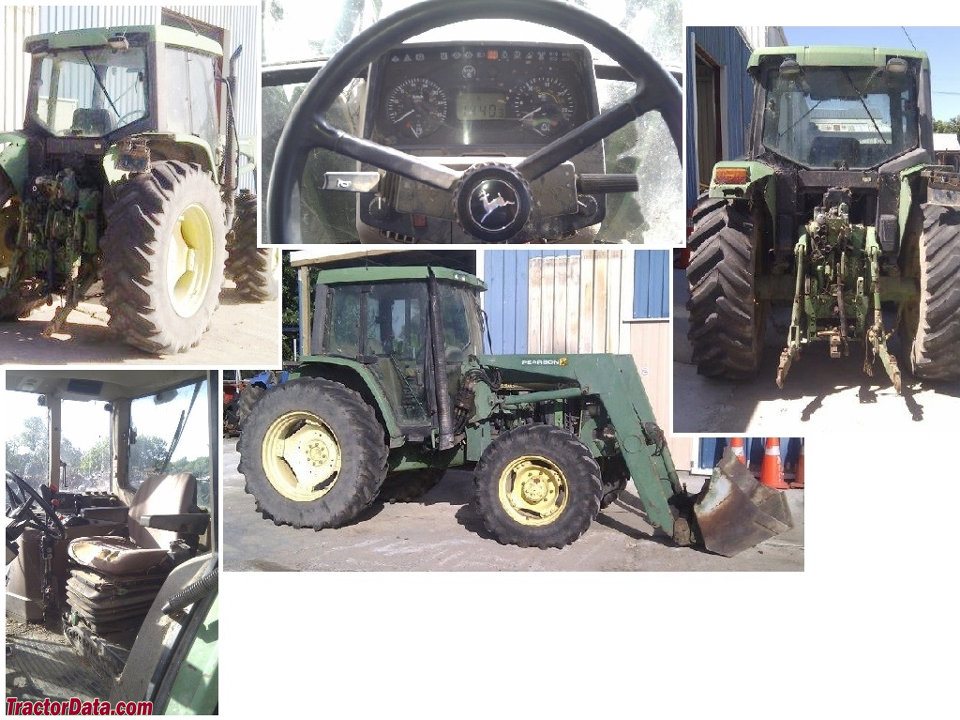

John Deere 6300 tractor photo
1992 - 1997
Series:620063006400
Production
Manufacturer:John Deere
Factory:Mannheim, Baden-Württemberg, Germany
Variants
6300SE:economy model
John Deere 6300 Power
Engine:90 hp
67.1 kW
John Deere 6300 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank:42.3 gal
160.1 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Cab standard.
Transmissions:12-speed fully synchronized
 15-speed fully synchronized
 16-speed partial power shift
 20-speed partial power shift
Transmission details ...
Hydraulics
Pressure:2900 psi
200.0 bar
Total flow:15.85 gpm
60.0 lpm
Tractor hitch
Rear Type:II
Rear lift:10790 lbs
4894 kg *Maximum force at top end of lift range
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
 540/540E/1000*Optional
Engine RPM:540@2017
540E@1684
1000@2208
Front PTO:independent
Front RPM:1000
Dimensions & Tires
Wheelbase:94.5 inches
240 cm
Weight:8930 lbs
4050 kg
Front tire:13.6R28
Rear tire:16.9R38
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:110
Battery volts:12
Battery AH:154
