Transmissions overview |
12-speed fully synchronized |
15-speed fully synchronized |
16-speed partial power shift |
20-speed partial power shift |
Transmission |
Transmission: | John Deere SyncroPlus
|
Type: | fully synchronized
|
Gears: | 12 forward and 4 reverse
|
Clutch: | 225mm wet disc
|
Three gears (1-3), plus reverse (R), in four ranges (A-D). |
Transmission |
Transmission: | John Deere SyncroPlus
|
Type: | fully synchronized
|
Gears: | 15 forward and 5 reverse
|
Clutch: | 225mm wet disc
|
Three gears (1-3), plus reverse (R), in five ranges (A-E). Also available in a 24-speed option with 40 kph maximum speed (depending on sales market). |

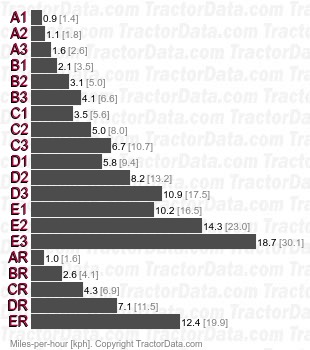

Speeds |
With 18.4-38 rear tires. |
|
Transmission |
Transmission: | John Deere PowrQuad
|
Type: | partial power shift
|
Gears: | 16 forward and reverse
|
Clutch: | 225mm wet disc
|
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle. |
Transmission |
Transmission: | John Deere PowrQuad
|
Type: | partial power shift
|
Gears: | 20 forward and reverse
|
Clutch: | 225mm wet disc
|
Four power shift gears (1-4) in five synchronized ranges (A-E) with power shuttle. Also available in a 24-speed option with 40 kph maximum speed (depending on sales market). |

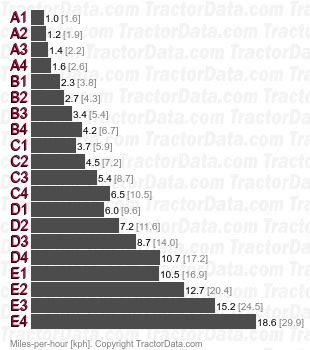

Speeds |
With 18.4-38 rear tires. |
|
