Tractors > Kubota > M126X Power Krawler

Kubota M126X Power Krawler

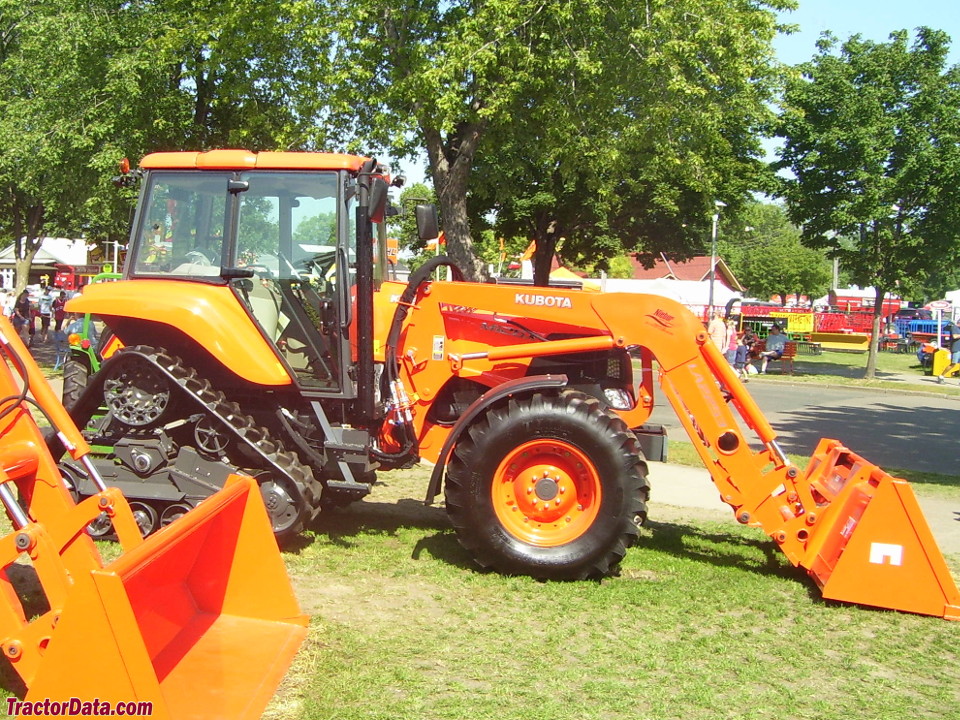

Kubota M126X Power Krawler tractor photo
2009 - 2014
Half-track Crawler tractor






Production:

Manufacturer:Kubota
Original price (USD):$76,964


Variants:

M126X:wheeled tractor
M126X Power Krawler:half-track


Kubota M126X Power Krawler Engine:

   Kubota 6.1L 4-cyl diesel
full engine details ...


Capacity:

Fuel:50.2 gal [190.0 L]
Hydraulic system:15.8 gal [59.8 L]
Front axle:17.5 qts [16.6 L]


3-Point Hitch:

Rear Type:II
Rear lift (at ends):5,809 lbs [2634 kg]
Rear lift (at 24"/610mm):5,203 lbs [2360 kg]
 9,447 lbs [4285 kg] (optional)


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:540@2035
1000@2210


Dimensions & Tires:

Wheelbase:105.9 inches [268 cm]
Weight:11,464 lbs [5200 kg]
Front tire:14.9R24
Rear tire:tracks
full dimensions and tires ...


Kubota M126X Power Krawler attachments:

 front-end loader
all M126X Power Krawler attachments ...


M126X Power Krawler Serial Numbers:


- Serial numbers unknown -



Kubota M126X Power Krawler Power:

Engine (net):125 hp [93.2 kW]
PTO (claimed):108 hp [80.5 kW]


Mechanical:

Chassis:half-track
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Cab standard with heat and air-conditioning. Optional radio/CD-player.


Hydraulics:

Type:open center
Capacity:15.8 gal [59.8 L]
Valves:2 to 4
Pump flow:20.4 gpm [77.2 lpm]
Total flow:35.7 gpm [135.1 lpm]
Steering flow:15.3 gpm [57.9 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:80


Battery:

Volts:12
