Tractors > John Deere > 6220L

John Deere 6220L - transmission

John Deere 6220L tractor photo
2002 - 2006
Orchard/Vineyard tractor
Previous model:John Deere 6210L
Series next:John Deere 6320L
Series back:John Deere 6120L
more John Deere 6220L specifications...






Transmission:

Transmission:John Deere SyncroPlus
Type:fully synchronized
Gears:12 forward and 4 reverse
Clutch:wet disc
Oil capacity:55 qts [52.1 L]
Oil type:
JD Hy-Gard

Three gears (1-3) plus reverse (R) in four ranges (A-D). Directional, gear, and range changes are synchronized and may be shifting while moving by using the clutch. Optional creeper adds an additional nine forward and three reverse speeds (ranges A-C) for a total of 21-forward and 7-reverse.
Speeds:With 16.9x24 R1 rear tires.
6220L SyncroPlus fully synchronized speeds


Transmission:

Transmission:John Deere SyncroPlus Power Reverser
Type:power shuttle
Gears:16 forward and reverse
Clutch:wet disc
Oil capacity:55 qts [52.1 L]
Oil type:
JD Hy-Gard

Four gears (1-4) in four ranges (A-D) with left-hand reverser. Gear and range shifts are synchronized. Power shuttle shifting between forward and reverse. Only available on open-station (ROPS) equipped tractors.
Speeds:With 16.9x24 R1 rear tires.

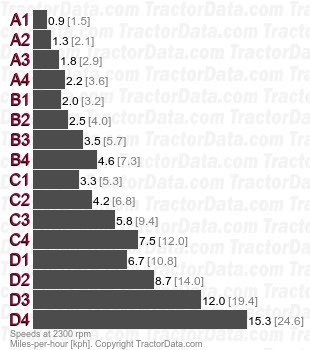

6220L SyncroPlus Power Reverser power shuttle speeds


Transmission:

Transmission:John Deere PowrQuad
Type:partial power shift
Gears:16 forward and reverse
Clutch:wet disc
Oil capacity:51.8 qts [49.0 L]
Oil type:
JD Hy-Gard

Four gears (1-4) in four ranges (A-D) with reverser lever. Clutchless power shift between gears (1-4) and direction changes (power shuttle). Range shifts (A-D) are synchronized, and may be shifted while the tractor is moving by using the clutch. Optional creeper adds an additional 12 speeds for 28 forward and reverse (ranges A-C). The PowrQuad uses a gear-shift lever while the PowrQuad Plus (cab tractors only) offers push-button gear shifting.
Speeds:With 16.9x24 R1 rear tires.

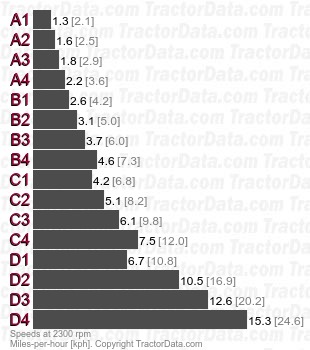

6220L PowrQuad partial power shift speeds


Transmission:

Transmission:John Deere PowrQuad Plus
Type:partial power shift
Gears:24 forward and reverse
Clutch:wet disc
Oil capacity:52.8 qts [50.0 L]
Oil type:
JD Hy-Gard

Four gears (1-4) in six ranges (A-F) with reverser lever. Push-button power shifting between gears (1-4) and power shuttle directional shifting using the reverser lever. Ranges (A-F) may be shifted on the move by using the clutch.
Speeds:With 16.9x24 R1 rear tires.
6220L PowrQuad Plus partial power shift speeds
