Tractors > John Deere > 1026R

John Deere 1026R Engine



John Deere 1026R tractor photo
2011 - 2013
1 Sub-Compact Series
Sub-Compact Utility tractor
Series map:
1023E
1026R
23.5hp
25.2hp
Engine Detail
Yanmar 3TNV76
diesel
3-cylinder
liquid-cooled
Displacement68.1 ci
1.1 L
Bore/Stroke2.9x3.2 inches
74 x 81 mm
EmissionsInterim Tier IV
Rated Power (ECE R24)23.8 hp
17.7 kW
Rated Power (EC 97/98)25.2 hp
18.8 kW
Fuel systemindirect injection
Air cleanerdual stage dry
Pre-heatingglow plugs
Compression23.5:1
Rated RPM3200
Operating RPM1400-3370
Firing order1-3-2
Starterelectric
Starter volts12
Coolant capacity3.9 qts
3.7 L
Coolant change2000 h
Engine Oil

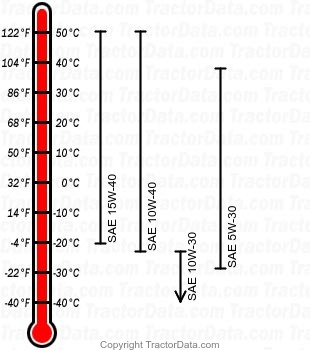

1026R diesel engine oil chart
Oil capacity2.9 qts
2.7 L
Oil change200 h

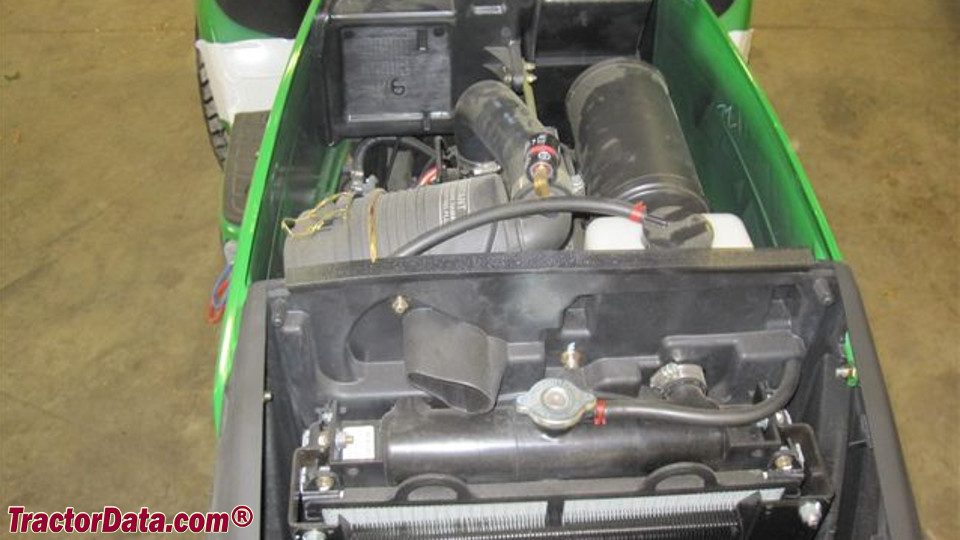

John Deere 1026R Engine

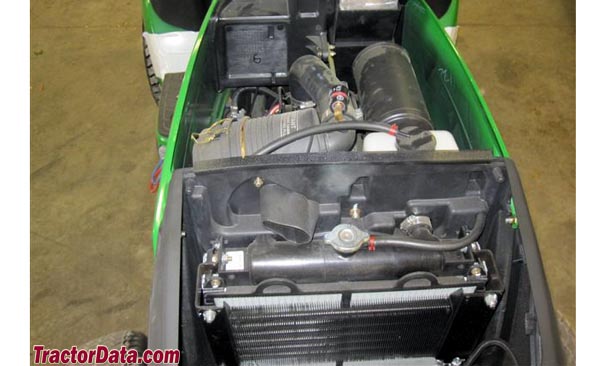

John Deere 1026R engine image
Image courtesy of Doug Easterlund
