| | 2011 - 2024 |
|
| 1 Sub-Compact Series | | Sub-Compact Utility tractor |
|
Series map:
1023E
1026R
23.5hp
25.2hp
| Engine Detail |
| Yanmar 3TNM72 |
| diesel |
| 3-cylinder |
| liquid-cooled |
| Displacement | 55.1 ci
0.9 L
|
| Bore/Stroke | 2.8x2.9 inches
71 x 74 mm
|
| Emissions | Interim Tier IV
|
| Rated Power (EC 97/98) | 23.5 hp
17.5 kW
|
| Fuel system | indirect injection
|
| Air cleaner | dry dual stage
|
| Pre-heating | glow plugs
|
| Rated RPM | 3200
|
| Operating RPM | 1400-3370
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 3.9 qts
3.7 L
|
| Coolant change | 2000 h
|

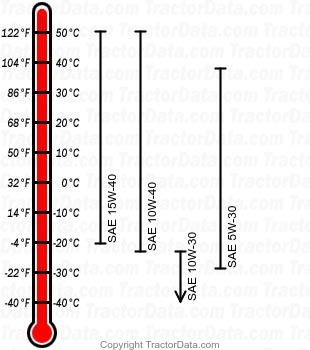

| Engine Oil |
|
| Oil capacity | 2.9 qts
2.7 L
|
| Oil change | 200 h
|

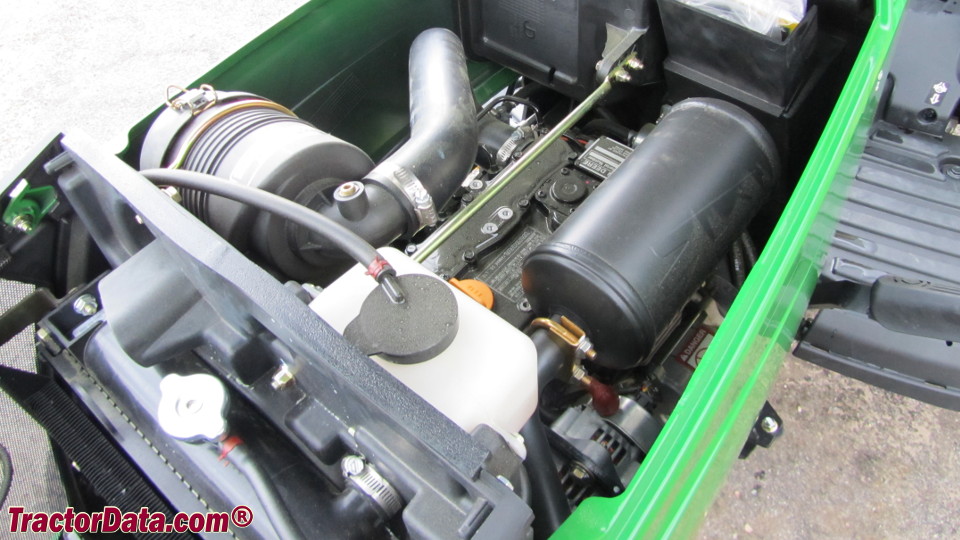

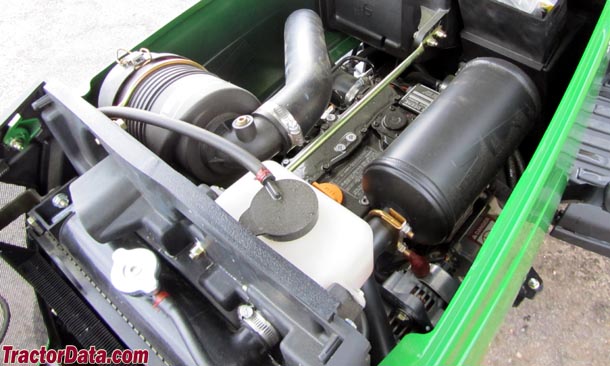

| John Deere 1023E Engine |
 |
