Massey Ferguson 2670 HD

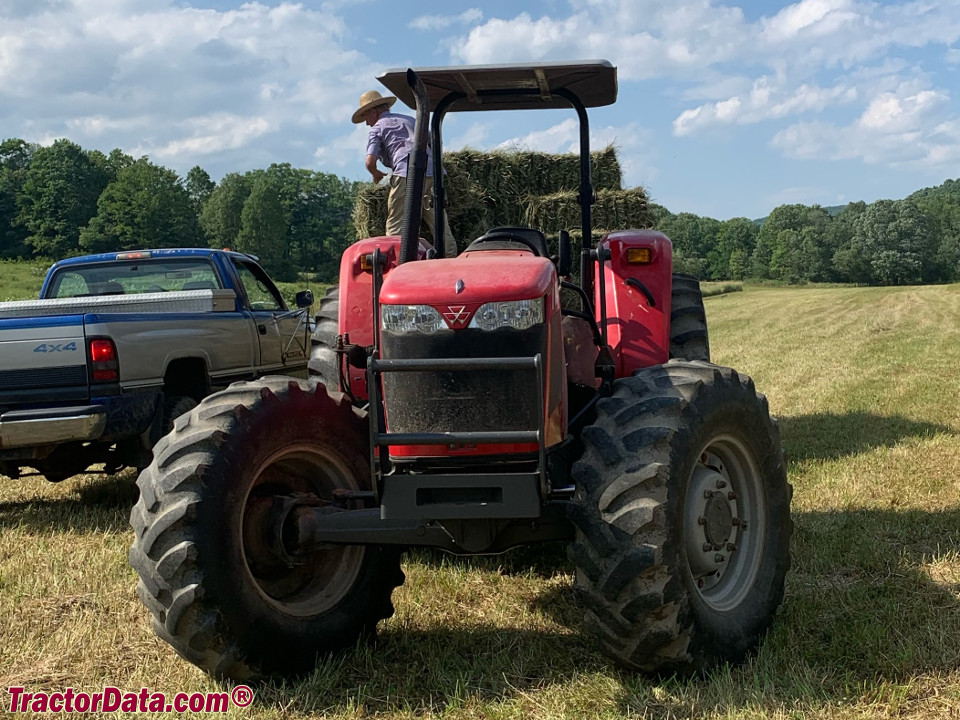

Massey Ferguson 2670 HD tractor photo
2010 - 2013
2600 HD Series
Utility tractor
Series map:
2660 HD
2670 HD
2680 HD
81.0hp
91.0hp
97.0hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Utility tractor
Built in Brazil
Variants
2670HDutility
2670LPlow-profile
2670HChigh-crop
Massey Ferguson 2670 HD Engine
Perkins 4.4L 4-cyl diesel
Fuel tank26.5 gal
100.3 L
Engine details ...
Massey Ferguson 2670 HD Transmissions
8-speed synchronized shuttle
12-speed partially synchronized
Transmission details ...
Massey Ferguson 2670 HD Power
Engine (gross)91 hp
67.9 kW
PTO (claimed)77 hp
57.4 kW
PTO (tested)83.12 hp
62.0 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockstandard
Power steering
Hydraulic wet disc brakes
ROPS. Cab optional.
Hydraulics
Typeopen center
Valves1 to 3
Pump flow17 gpm
64.3 lpm
Total flow25 gpm
94.6 lpm
Tractor hitch
Rear TypeII
Rear lift (at 24"/610mm)3,682 lbs
1670 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
 540/1000 (optional)
Dimensions & Tires
Wheelbase90 inches
228 cm
Weight6812 to 8445 pounds
Front tire10.00-16
Rear tire18.4-30 (2WD)
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps55
Cab Charging amps90
Battery CCA750
Battery volts12
References

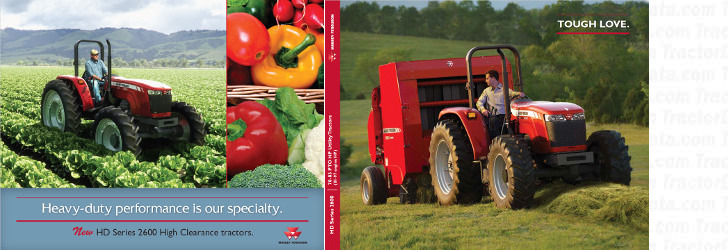

2670 HD references literature
New HD Series 2600 High Clearance tractors published in 2011, by Massey Ferguson
HD Series 2600 published in 2012, by Massey Ferguson
