Tractors > Massey Ferguson > 2660 HD

Massey Ferguson 2660 HD

Massey Ferguson 2660 HD tractor photo
2010 - 2013   2600 HD Series
Utility tractor
Previous model:Massey Ferguson 583
Series next:Massey Ferguson 2670 HD
Series back:Massey Ferguson 2650 HD






Production:

Manufacturer:Massey Ferguson
Factory:Brazil


Variants:

2660HD:utility
2680LP:low-profile
2660HC:high-crop


Massey Ferguson 2660 HD Engine:

   Perkins 4.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:26.5 gal [100.3 L]


3-Point Hitch:

Rear Type:II
Rear lift (at 24"/610mm):3,391 lbs [1538 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540


Dimensions & Tires:

Wheelbase:90 inches [228 cm]
Weight:5578 to 7750 pounds
Front tire:9.5L-15SL
Rear tire:18.4-30 (2WD)
full dimensions and tires ...


Massey Ferguson 2660 HD attachments:

 front-end loader
all 2660 HD attachments ...

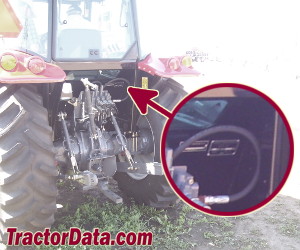

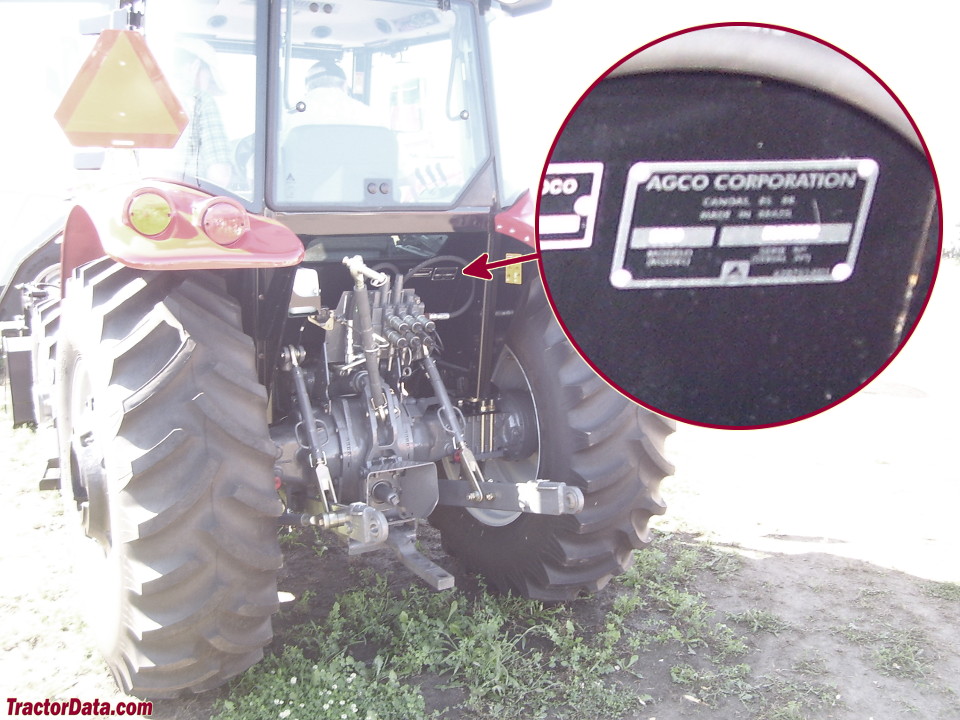

2660 HD Serial Numbers:

Location:Rear of tractor

- Serial numbers unknown -



Massey Ferguson 2660 HD Power:

Engine (gross):81 hp [60.4 kW]
PTO (claimed):70 hp [52.2 kW]
PTO (tested):70.96 hp [52.9 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lock:standard
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:ROPS. Cab optional.


Hydraulics:

Type:open center
Valves:1 to 3
Pump flow:14.5 gpm [54.9 lpm]
Total flow:22.5 gpm [85.2 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
