Massey Ferguson 2650 HD

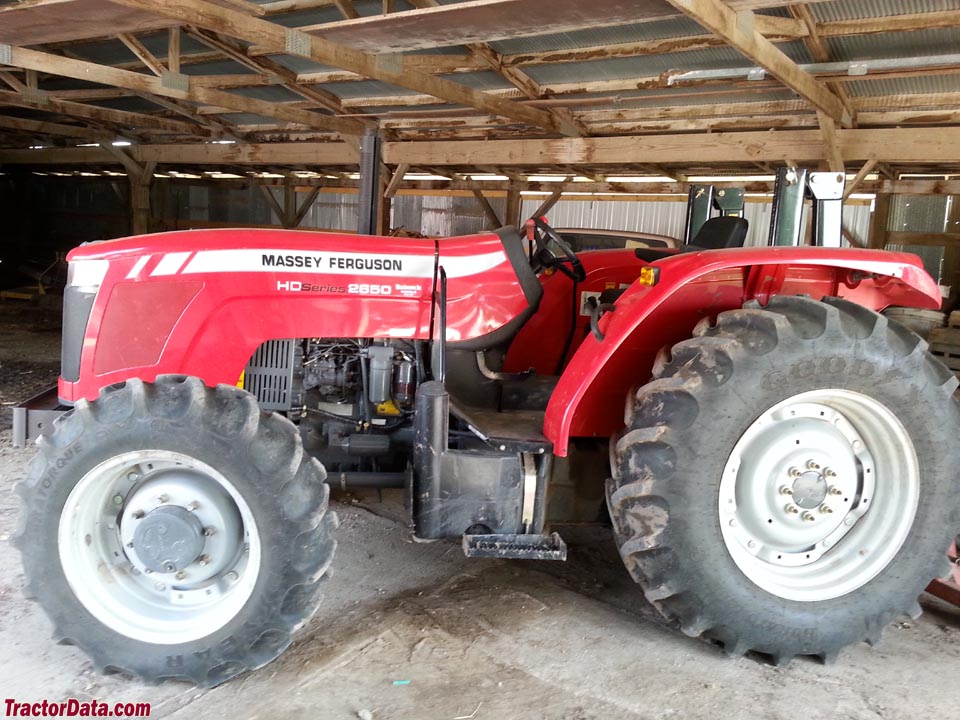

Massey Ferguson 2650 HD tractor photo
2010 - 2011
2600 HD Series
Utility tractor
573
Series:2650 HD2660 HD
Production
Manufacturer:Massey Ferguson
Type:Utility tractor
Factory:Brazil
Variants
2650HD:utility
2680LP:low-profile
Massey Ferguson 2650 HD Power
Engine (gross):74 hp
55.2 kW
PTO (claimed):62 hp
46.2 kW
PTO (tested):67.06 hp
50.0 kW
power test details ...
Massey Ferguson 2650 HD Engine
Perkins 4.4L 4-cyl diesel
Fuel tank:26.5 gal
100.3 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:standard
Steering:power
Brakes:hydraulic wet disc
Cab:ROPS. Cab optional.
Transmissions:8-speed synchronized shuttle
 12-speed partially synchronized
Transmission details ...
Hydraulics
Type:open center
Valves:1 to 3
Pump flow:14.5 gpm
54.9 lpm
Total flow:22.5 gpm
85.2 lpm
Tractor hitch
Rear Type:II
Rear lift (at 24"/610mm):3,391 lbs
1538 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:90 inches
228 cm
Weight:5578 to 7319 pounds
Front tire:9.5L-15SL
Rear tire:16.9-30 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
ROPS Charging amps:55
Cab Charging amps:90
Battery CCA:750
Battery volts:12
