New Holland TD5030 - tests

New Holland TD5030 tractor photo
2009 -    TD5000 Series
Utility tractor
Series next:New Holland TD5040
Series back:New Holland TD5020
more New Holland TD5030 specifications...






OCED Tractor Test 2583:

Nebraska summary:765

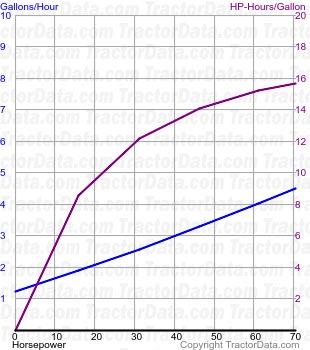

TD5030 fuel use from test 765
Test Date:December 2008 - January 2009,
Type:Diesel 12-speed 4WD
PTO power (max):72.1 hp [53.8 kW]
PTO fuel use (max):4.4 gal/hour [16.7 l/hour]
PTO power (rated engine speed):70.3 hp [52.4 kW]
PTO fuel use (engine speed):4.5 gal/hour [17.0 l/hour]
PTO power (rated PTO speed):70.9 hp [52.9 kW]
PTO fuel use (PTO speed):4.1 gal/hour [15.5 l/hour]
Drawbar power (max):59.7 hp [44.5 kW]
Drawbar fuel use (max):4.2 gal/hour [15.9 l/hour]
Drawbar pull (max):4,795 lbs [2175 kg]
Max pull gear:II-3
Test report:PDF file
