    New Holland Workmaster 75

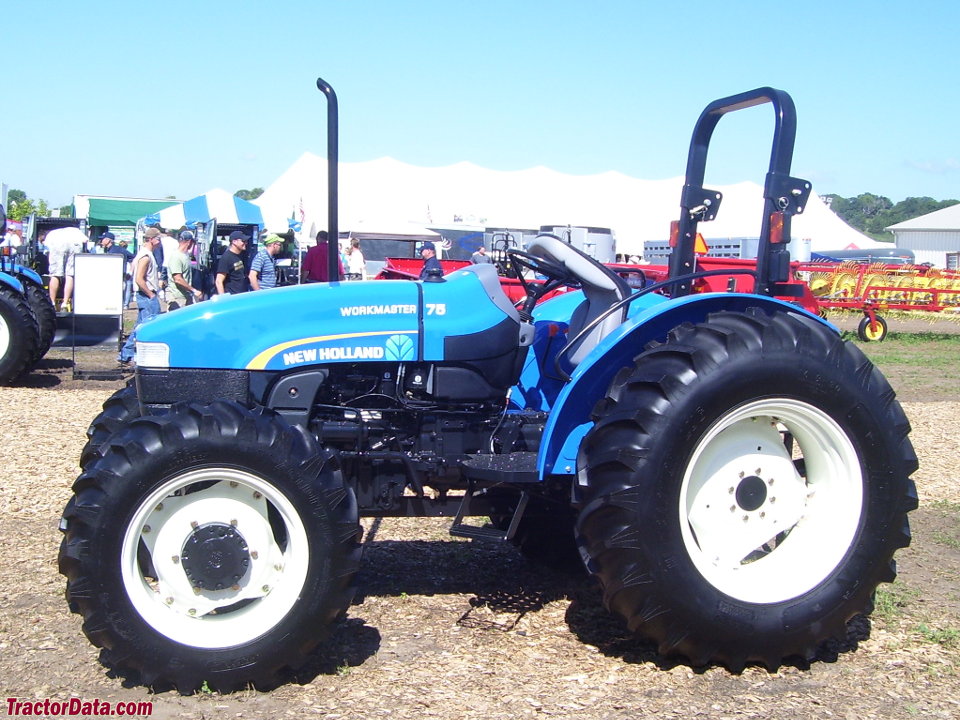

    New Holland Workmaster 75 tractor photo
    2010 -    Workmaster Series
    Utility tractor
    Smaller:New Holland Workmaster 65






    Production:

    Manufacturer:New Holland
    Factory:India


    New Holland Workmaster 75 Engine:

       FPT 3.2L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:16 gal [60.6 L]


    3-Point Hitch:

    Rear Type:2/1
    Control:position control and mechanical draft sensing
    Rear lift (at ends):3,276 lbs [1485 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540


    Dimensions & Tires:

    Weight:5059 to 5790 pounds
    Front tire:11.2x24
    Rear tire:16.9x30
    full dimensions and tires ...


    Workmaster 75 Serial Numbers:


    - Serial numbers unknown -



    New Holland Workmaster 75 Power:

    Engine (gross):75 hp [55.9 kW]
    PTO (claimed):65 hp [48.5 kW]
    PTO (tested):68.18 hp [50.8 kW]
    power test details ...


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Differential lock:mechanical rear lock engaged by foot pedal, limited slip front differential (4WD)
    Steering:hydrostatic power
    Brakes:differential mechanical wet disc
    Cab:Two-post foldable ROPS


    Hydraulics:

    Type:open center fixed displacement
    Rear valves:1 or 2
    Mid valves:2 (loader)
    Pump flow:10.4 gpm [39.4 lpm]
    Total flow:18.7 gpm [70.8 lpm]
    Steering flow:8.3 gpm [31.4 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:65
    Charging volts:12


    Battery:

    Cold-cranking amps:800
    Volts:12
