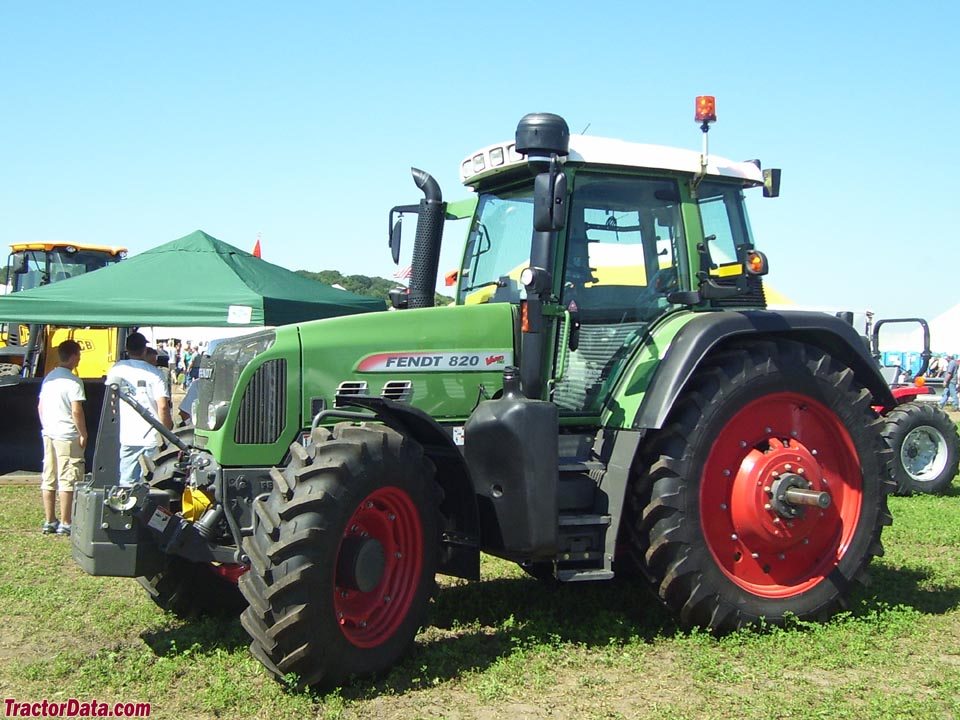

Fendt 820 Vario
Production |
Manufacturer | Fendt
|
Built in Marktoberdorf, Germany |
Fendt 820 Vario Power |
Engine (gross) | 207 hp 154.4 kW
|
Engine (net) | 190 hp 141.7 kW
|
Engine (max) | 212 hp 158.1 kW
|
PTO (claimed) | 175 hp 130.5 kW
|
Mechanical |
Four-wheel drive |
Wet discs brakes |
Cab standard with air-conditioning. |
Hydraulics |
Type | load sensing
|
Pressure | 2,900 psi 200.0 bar
|
Valves | 3 or 4
|
Total flow | 29.1 gpm 110.1 lpm
|
Tractor hitch |
Rear lift | 13,345 lbs 6053 kg
|
Front lift | 5,520 lbs 2503 kg
|
Power Take-off (PTO) |
Rear RPM | 540/540E/1000
|
Front RPM | 1000 (optional)
|
Electrical |
Charging system | alternator
|
Charging amps | 200
|
Battery CCA | 1020
|
Battery volts | 12
|
Battery AH | 170
|
