Tractors > Ascot Universal > 300

Ascot Universal 300 - transmission

Ascot Universal 300 tractor photo
more Ascot Universal 300 specifications...





Note: the Ascot Universal model 300 is the same as the UTB/Universal 300. The following data is from the 300 listing.


Transmission:

Type:constant mesh
Gears:9 forward and 3 reverse
Clutch:254mm dry discs
Three gears (1-3) plus reverse (R) in three ranges (creeper, low, and high).

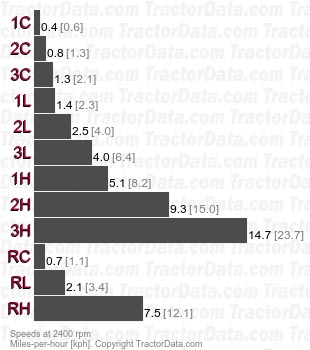

Speeds:With 12.4x28 rear tires.
300  constant mesh speeds
