Tractors > New Holland > Boomer 3045

New Holland Boomer 3045

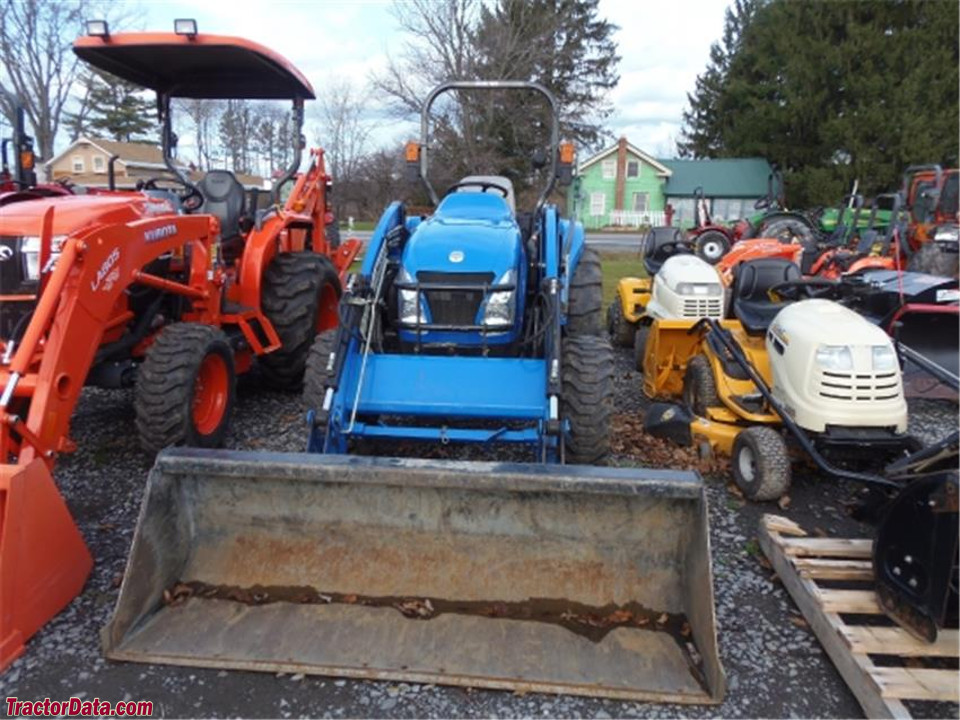

New Holland Boomer 3045 tractor photo
2008 - 2017   Boomer Series
Model years
Compact Utility tractor
Previous model:New Holland T2320
Series next:New Holland Boomer 3050
Series back:New Holland Boomer 3040






Production:

Manufacturer:New Holland
Original price (USD)
   $21,992 (2009 )


New Holland Boomer 3045 Engine:

   Shibaura 2.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:13 gal [49.2 L]


3-Point Hitch:

Rear Type:I
Rear lift (at ends):3,275 lbs [1485 kg]
Rear lift (at 24"/610mm):2,330 lbs [1056 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
Mid PTO:independent (optional)
Mid RPM:2,200


Dimensions & Tires:

Wheelbase:73.5 inches [186 cm]
 81 inches [205 cm] (SuperSteer)
Weight:3497 to 4115 pounds
Front tire:8.0x16
Rear tire:14.9x24
full dimensions and tires ...


New Holland Boomer 3045 attachments:

 mowing deck
 front-end loader
 backhoe
all Boomer 3045 attachments ...


Boomer 3045 Serial Numbers:


- Serial numbers unknown -



New Holland Boomer 3045 Power:

Engine (gross):45 hp [33.6 kW]
Gear PTO (claimed):39.6 hp [29.5 kW]
Hydro PTO (claimed):37.8 hp [28.2 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:mechanical wet disc
Cab:ROPS. Canopy optional. SuperSuite cab optional with heat and air-conditioning.


Hydraulics:

Type:open center
Pressure:2500 psi [172.4 bar]
Pump flow:9.8 gpm [37.1 lpm]
Total flow:14.9 gpm [56.4 lpm]
Steering flow:5.1 gpm [19.3 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:40
 55 (cab)


Battery:

Number:1
Cold-cranking amps:600
Volts:12
