Tractors > Allis Chalmers > E 30-60 Threshermans Special

Allis Chalmers E 30-60 Threshermans Special

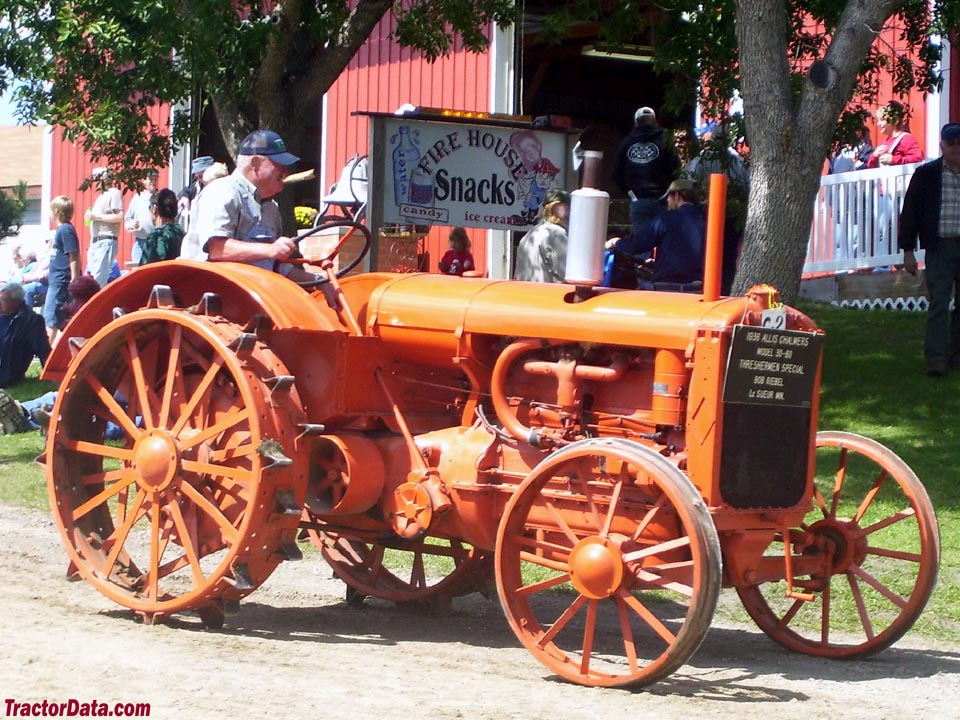

Allis Chalmers E 30-60 Threshermans Special tractor photo
Standard-tread tractor





Similar to the basic E 25-40, the Allis-Chalmers model E Thresherman's Special was rated at 60 belt horsepower due to larger bore pistons. The tractor was intended for stationary belt work, and plowing was not covered by the warranty.


Production:

Manufacturer:Allis Chalmers
Total built:70 (estimated)
Original price (USD):$1,025 (1934)


Allis Chalmers E 30-60 Engine:

   Allis Chalmers gasoline
full engine details ...


Capacity:



Dimensions & Tires:

Weight:6,280 lbs [2848 kg]
full dimensions and tires ...


E 30-60 Serial Numbers:


- Serial numbers unknown -



Allis Chalmers E 30-60 Power:

Drawbar (claimed):30 hp [22.4 kW]
Belt (claimed):60 hp [44.7 kW]


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
