    Ford 5000 Diesel

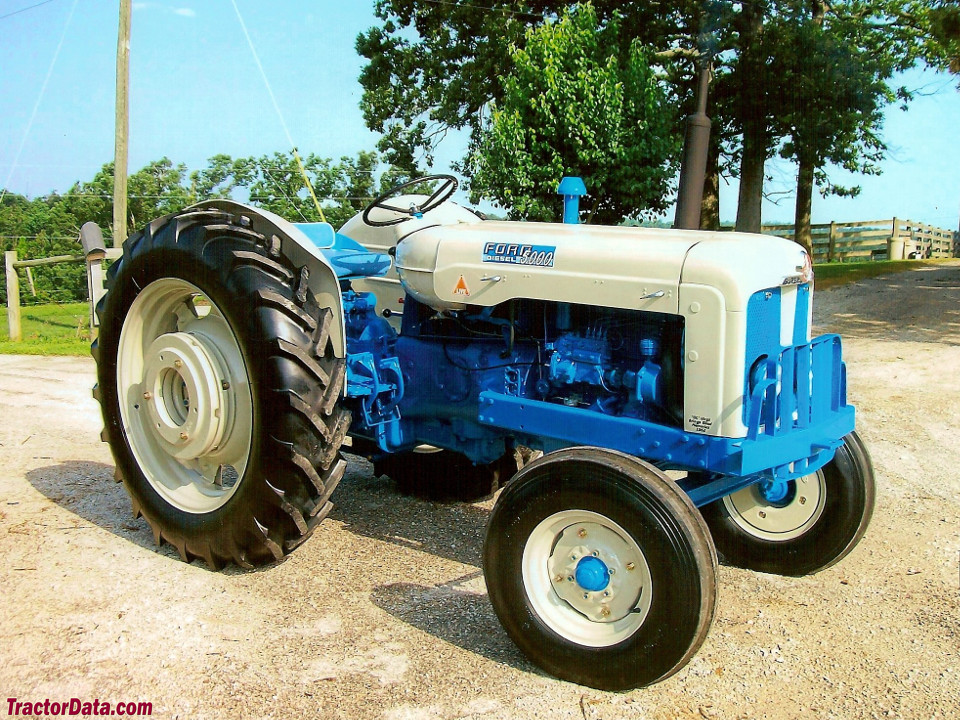

    Ford 5000 Diesel tractor photo
    1962 - 1964
    Next model:Ford 5000
    Series next:Ford 6000





    The Ford 5000 Diesel was the British-built Fordson Super Major with a different paint scheme. The 5000 Diesel was imported into the United States to provide a large diesel tractor to Ford dealers. The tractor had no relation, other than name, to the later Ford 5000 that followed it. The 5000 Diesel featured a blue and cream paint scheme, and new decals, although it retained the Super Major hood badge.


    Production:

    Manufacturer:Ford
    Factory:Dagenham, England


    Variants:

    Super Major:British model


    Ford 5000 Diesel Engine:

       Ford 3.6L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:18 gal [68.1 L]


    Power Take-off (PTO):

    Rear RPM:540


    Dimensions & Tires:

    Wheelbase:80 inches [203 cm]
    Weight:5555 to 10845 pounds
    Front tire:7.50-15
    Rear tire:16.9-30
    full dimensions and tires ...


    5000 Diesel Serial Numbers:


    - Serial numbers unknown -



    Ford 5000 Diesel Power:

    Plows:4
    Drawbar (tested):40.21 hp [30.0 kW]
    PTO (tested):47.53 hp [35.4 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:power assist
    Brakes:differential mechanical disc
    Cab:Open operator station.


    Belt Pulley:

    Diameter:8.5 inches [21 cm]
    Width:6.38 inches [16 cm]
    RPM:946 (low)
     1,700 (high)
    Speed:2,105 ft/min [641.60 meters/min] (low)
     3,783 ft/min [1153.06 meters/min] (high)


    Battery:

    Number:2
    Volts:6
