Ford 5000 Diesel Tests


Ford 5000 Diesel tractor photo
1962 - 1964
Series map:
5000 Diesel
6000
51.8hp
73.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 845

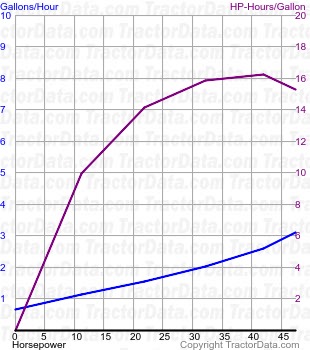

5000 Diesel fuel use from test 845
Nebraska Tractor Test 845
Diesel 6-speed 2WD
September 3 - 7, 1963
Link: Nebraska Tractor Test 845 file
PTO performance
Power at rated engine speed47.53 hp
35.4 kW
Fuel use3.1 gal/hour
11.7 l/hour
Power at rated PTO speed42.89 hp
32.0 kW
Fuel use2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power40.21 hp
30.0 kW
Fuel use3.0 gal/hour
11.4 l/hour
Gear 3 used for power test.
Max pull8,128 lbs
3686 kg
Gear 1 used for pull test.
