Tractors > CaseIH > Magnum 225

CaseIH Magnum 225 Tests



CaseIH Magnum 225 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 210
Magnum 225
210.0hp
225.0hp
OCED Tractor Test 1996

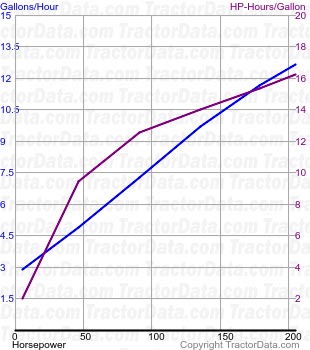

Magnum 225 fuel use from test 771
OCED Tractor Test 1996
Diesel CVT 4WD
June 9 - 13, 2011
Link: OCED Tractor Test 1996 file
PTO performance
Max power214.87 hp
160.2 kW
Fuel use11.8 gal/hour
44.7 l/hour
Power at rated engine speed204.77 hp
152.7 kW
Fuel use12.6 gal/hour
47.7 l/hour
Power at rated PTO speed211.76 hp
157.9 kW
Fuel use11.9 gal/hour
45.0 l/hour
Drawbar performance
Max power171.98 hp
128.2 kW
Fuel use12.9 gal/hour
48.8 l/hour
Pull at 9.0 KPH
Max pull19462 lbs
8827 kg
Pull at 5.2 KPH
