Tractors > McCormick Intl > CX110

McCormick Intl CX110

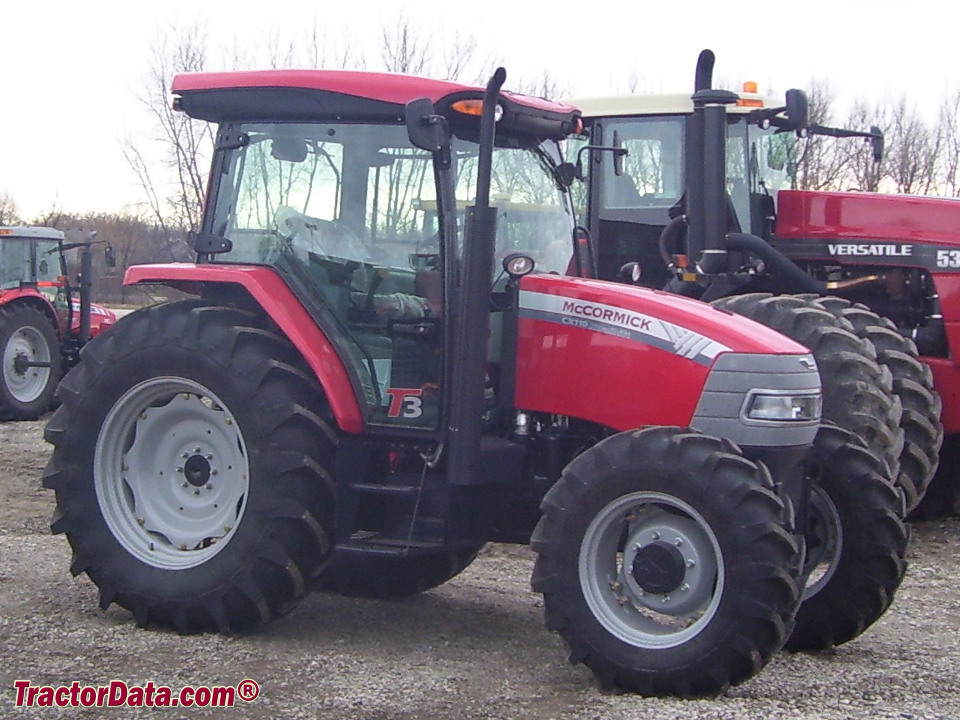

McCormick Intl CX110 tractor photo
2008 - 2011   CX Series
Utility tractor
Series back:McCormick Intl CX100






Production:

Manufacturer:McCormick Intl
Factory:Italy


McCormick Intl CX110 Engine:

   Perkins 4.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:40.9 gal [154.8 L]


3-Point Hitch:

Rear Type:II
Rear lift:7,054 lbs [3199 kg]
 9,810 lbs [4449 kg] (optional)
Front Hitch:II (optional)
Front lift:6,613.9 lbs [3000 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000
 540/750 (optional)
Front PTO:independent (optional)
Front RPM:1000


Dimensions & Tires:

Wheelbase:96.5 inches [245 cm]
Weight:9193.3 to 9347.6 pounds
Front tire:320/85R24
Rear tire:420/85R34
full dimensions and tires ...


CX110 Serial Numbers:


- Serial numbers unknown -



McCormick Intl CX110 Power:

Engine:102 hp [76.1 kW]
PTO (claimed):85 hp [63.4 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard. Optional sir-conditioning.


Hydraulics:

Valves:2
Pump flow:15.8 gpm [59.8 lpm]
Total flow:23.7 gpm [89.7 lpm]
Steering flow:7.9 gpm [29.9 lpm]


Battery:
