McCormick Intl TTX210



McCormick Intl TTX210 tractor photo
2007 - 2013
TTX Series
Row-Crop tractor
Series map:
TTX190
TTX210
TTX230
180.0hp
198.0hp
213.0hp
Production
ManufacturerMcCormick Intl (a part of Argo)
Row-Crop tractor
Built in Fabbrico, Italy
McCormick Intl TTX210 Engine
Iveco 6.7L 6-cyl diesel
Fuel tank92 gal
348.2 L
Engine details ...
McCormick Intl TTX210 Transmissions
32-speed partial power shift
48-speed partial power shift
Transmission details ...
McCormick Intl TTX210 Power
Engine198 hp
147.6 kW
PTO (claimed)187 hp
139.4 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with heat and air-conditioning. Optional hydraulic suspension.
Photos

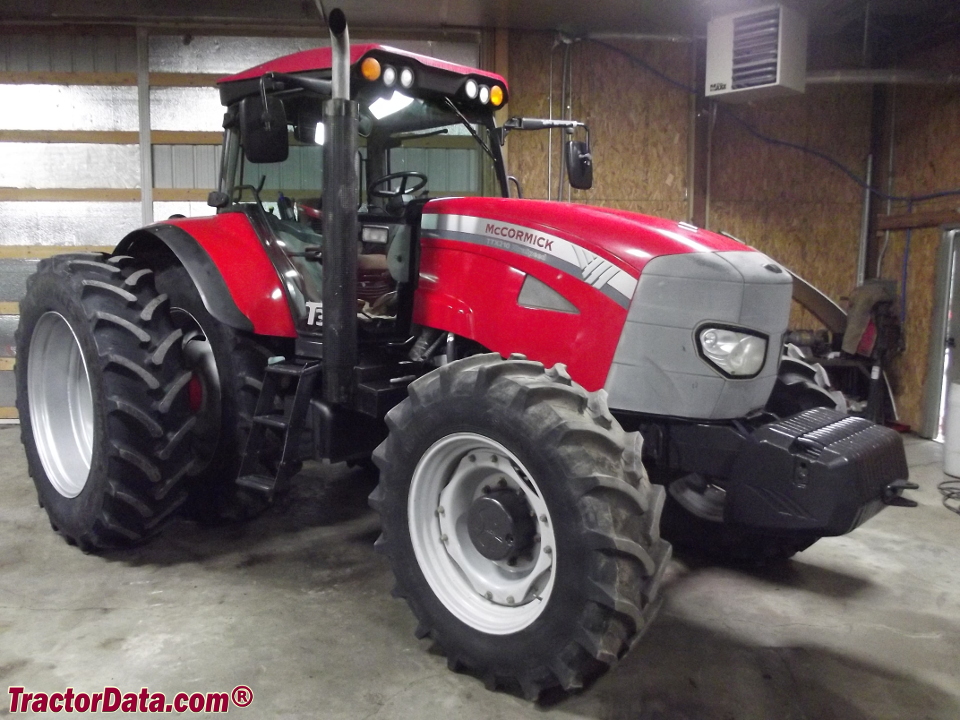

McCormick Intl TTX210
McCormick Intl TTX210 photos...
Hydraulics
Typeclosed center
Valves3 to 5
Total flow34 gpm
128.7 lpm
 43 gpmOptOptional
162.8 lpm
Tractor hitch
Rear TypeIII
Rear lift24141 lbs
10950 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/1000
Dimensions & Tires
Wheelbase113 inches
287 cm
Weight15884 lbs
7204 kg
Front tire540/65R30
Rear tire650/65R42
Full dimensions and tires ...
References
TTX210 references literature
TTX published in 2009, by McCormick
