AGCO RT140A Transmission


AGCO RT140A tractor photo
2006 - 2011
RT-A Series
Row-Crop tractor
RT140
Series:RT120ART140ART155A
Transmissions overview
32-speed partial power shift
24-speed partial power shift
continuously variable transmission
Transmission
Transmission:QuadraShift
Type:partial power shift
Gears:32 forward and reverse
Clutch:wet disc
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.
Transmission
Transmission:Auto-6
Type:partial power shift
Gears:24 forward and reverse
Clutch:wet disc
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.
Transmission
Transmission:PowerMaxx CVT
Type:continuously variable transmission
Gears:infinite (two-range) forward and reverse
Combination hydrostatic-mechanical CVT transmission. With the suspended front axle a transport speed of 50 KPH is available. Creeper speed available down to 0.03 KPH.
Speeds

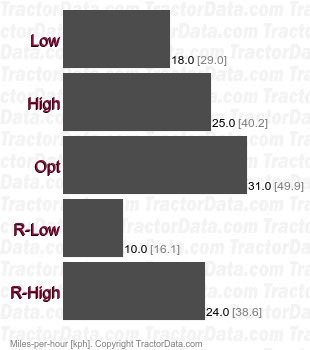

RT140A PowerMaxx CVT continuously variable transmission speeds
