New Holland TL80A

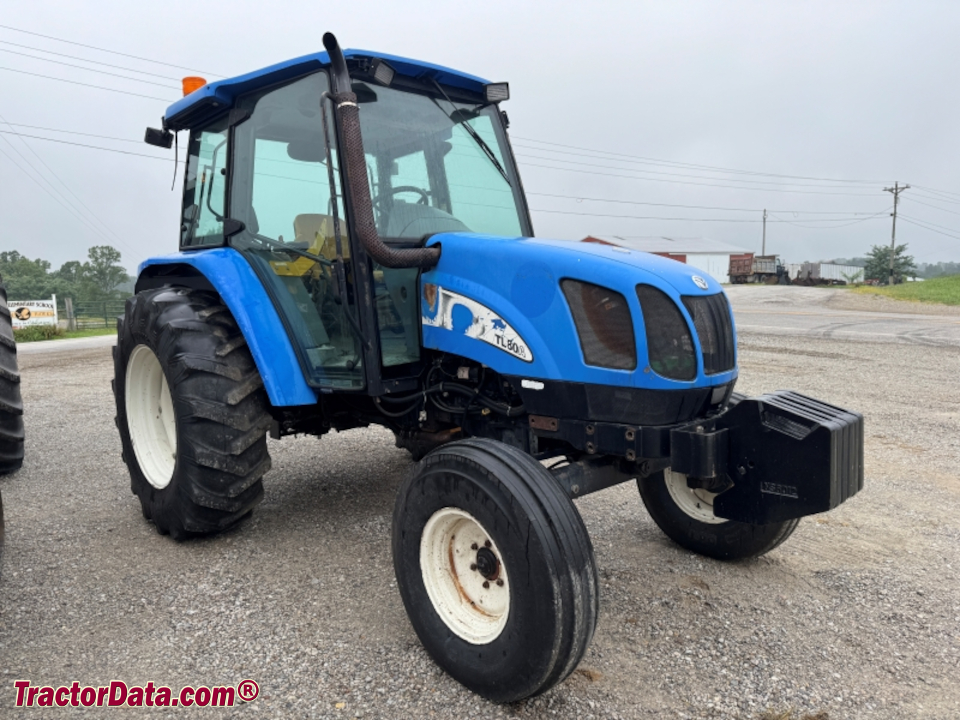

New Holland TL80A tractor photo
2004 - 2007
TL-A Series
Utility tractor
TL80
Series:TL80ATL90A
Production
Manufacturer:New Holland
Type:Utility tractor
Factory:Jesi, Italy
The New Holland TL80A is available in standard and deluxe configurations. The deluxe model features the 24x24 power shift, air-ride seat, electro-hydraulic PTO, and flexible link ends on the three-point hitch.
New Holland TL80A Power
Engine (gross):80 hp
59.7 kW
PTO (claimed):69 hp
51.5 kW
Drawbar (tested):49.6 hp
37.0 kW
PTO (tested):71.4 hp
53.2 kW
power test details ...
New Holland TL80A Engine
CNH Diesel 4.5L 4-cyl diesel
Fuel tank:33.5 gal
126.8 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear*2WD Standard
 electro-hydraulic rear*4WD Standard and all Deluxe
Brakes:hydrostatic power
Cab:ROPS. Cab optional.
Transmissions:12-speed mechanical shuttle
 24-speed power shuttle
 20-speed mechanical shuttle
Transmission details ...
Photos
No photos of the New Holland TL80A are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:open center
Valves:1 to 3
Pump flow:14.5 gpm
54.9 lpm
Total flow:20 gpm
75.7 lpm
Steering flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:II
Control:mechanical lower-link draft control
Rear lift (at ends):fixed lbs
0 kg ends
 flexible lbs
0 kg ends *Optional
Rear lift (at 24"/610mm):5745 lbs
2605 kg
Power Take-off (PTO)
Rear PTO:independent
Standard Clutch:12-inch cerametallic dry disc
Deluxe Clutch:wet discs
Rear RPM:540
Dimensions & Tires
Wheelbase:92.2 inches
234 cm (2WD)
 91.1 inches
231 cm (4WD)
Weight:6393 to 8665 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
Battery CCA:960
Battery volts:12
